DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOH-x83x-2_ZSpec

NIBCO Hydro-Core Manifold. Model H-x83x-2. Includes (2) Full Port Ball Valves; Hi-Flow Hose Drains; Adjustable Packing Glands; Max Temperature 250°F. material: Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-x83x-2_ZSpec.pdfData sheet

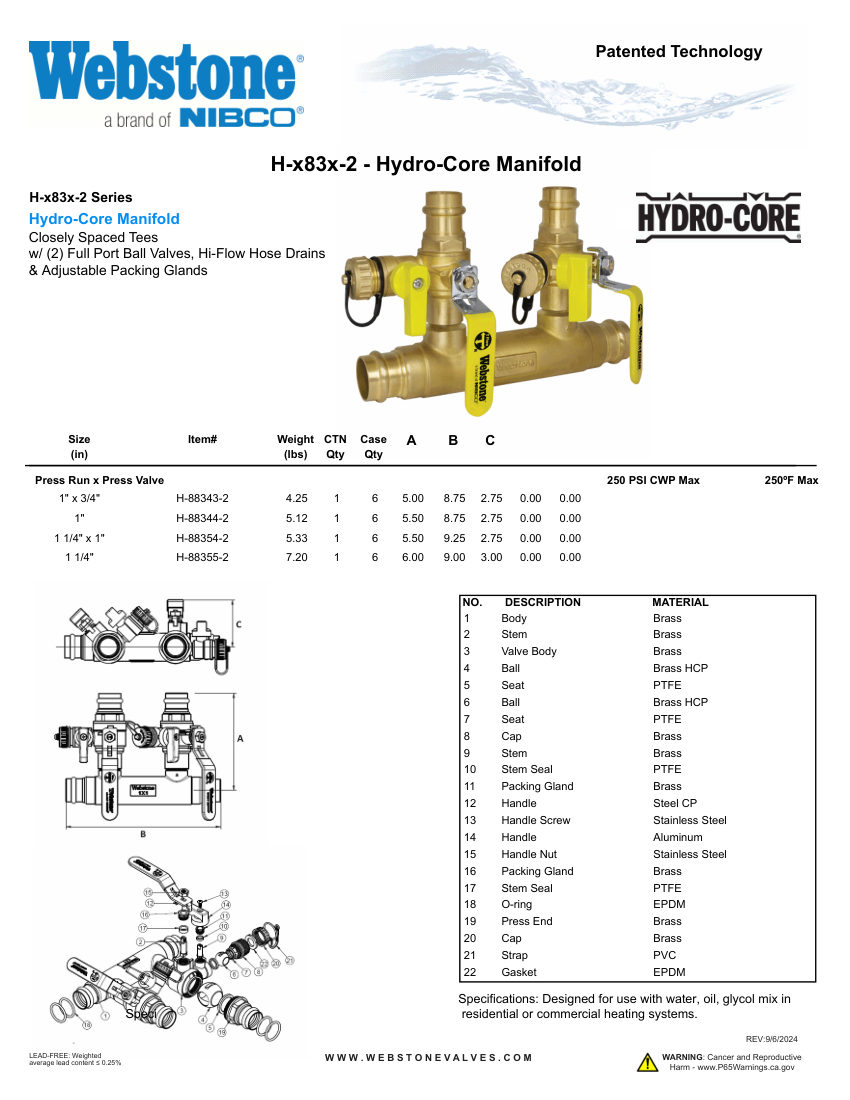

NIBCO H-x83x-2_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-x83x-2_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-x83x-2_ZSpec
DescriptionNIBCO Hydro-Core Manifold. Model H-x83x-2. Includes (2) Full Port Ball Valves; Hi-Flow Hose Drains; Adjustable Packing Glands; Max Temperature 250°F. material: Brass
Connection size1" x 3/4", 1", 1 1/4" x 1", 1 1/4"
End connectionPress
Pressure Rating250 PSI CWP Max
DimensionsA: 5.00-6.00 in, B: 8.75-9.25 in, C: 2.75-3.00 in
ComplianceLead-Free (≤ 0.25%).
