NIBCOLD-2000/2100 Large DiameterLD-2000/2100

NIBCO Lug Style Butterfly Valve (Butterfly Valve). Model LD-2000/LD-2100. Ductile Iron ASTM A536 Grade 65-45-12 body; EPDM or Buna-N liner options; 150 PSI bi-directional dead end service rating; Certified Lead-Free (weighted average ≤ 0.25%). material: Ductile Iron Body, Alum. Bronze Disc, Stainless Steel Stem

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLD-2000-2100.pdfData sheet

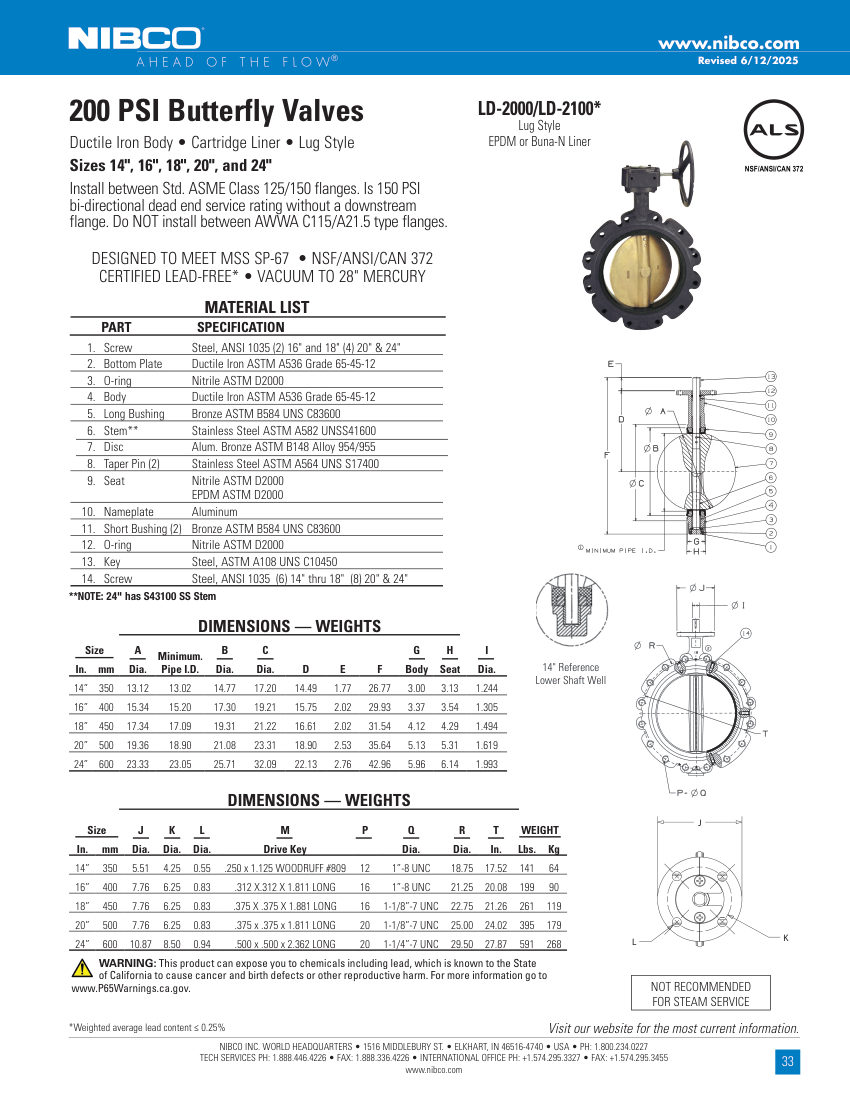

NIBCO LD-2000/2100 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
LD-2000/2100
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLD-2000/2100
DescriptionNIBCO Lug Style Butterfly Valve (Butterfly Valve). Model LD-2000/LD-2100. Ductile Iron ASTM A536 Grade 65-45-12 body; EPDM or Buna-N liner options; 150 PSI bi-directional dead end service rating; Certified Lead-Free (weighted average ≤ 0.25%). material: Ductile Iron Body, Alum. Bronze Disc, Stainless Steel Stem
Connection size14", 16", 18", 20", 24"
End connectionLug Style, ASME Class 125/150 Flanges
Pressure Rating200 PSI
MountingLug Style
DimensionsSee dimension table (e.g., 14" Body Dia 14.77 in).

Also cataloged as: LD-2000-2100-Large-Diameter
