NIBCOLD-2010/2110 Large DiameterLD-2010/2110

NIBCO Lug Style Butterfly Valve (Butterfly Valves). Model LD-2010/LD-2110. Body material is Ductile Iron ASTM A536 Grade 65-45-12; Disc is Nickel Plated Ductile Iron; Liner options are EPDM or Buna-N (Nitrile); Rated for 200 PSI and vacuum to 28" Mercury. material: Ductile Iron Body, E-Nickel Ductile Iron Disc, EPDM or Buna-N Liner

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLD-2010-2110.pdfData sheet

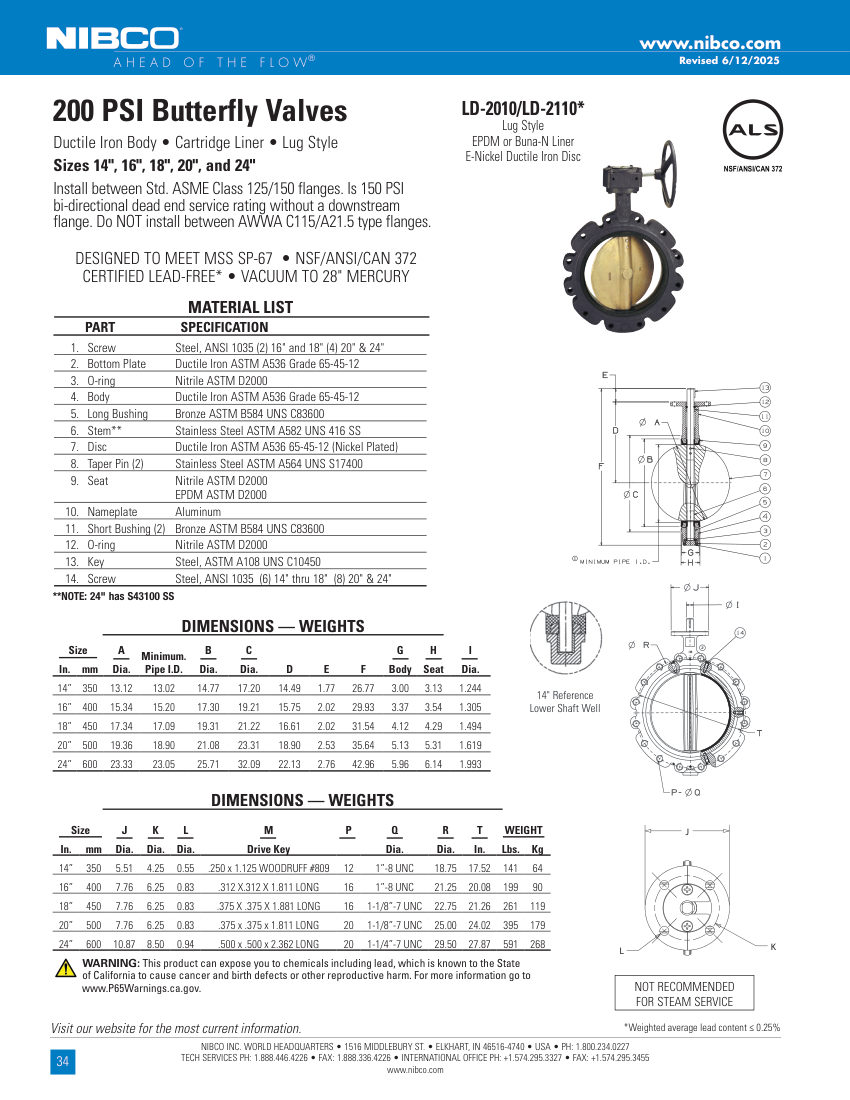

NIBCO LD-2010/2110 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
LD-2010/2110
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLD-2010/2110
DescriptionNIBCO Lug Style Butterfly Valve (Butterfly Valves). Model LD-2010/LD-2110. Body material is Ductile Iron ASTM A536 Grade 65-45-12; Disc is Nickel Plated Ductile Iron; Liner options are EPDM or Buna-N (Nitrile); Rated for 200 PSI and vacuum to 28" Mercury. material: Ductile Iron Body, E-Nickel Ductile Iron Disc, EPDM or Buna-N Liner
Connection size14", 16", 18", 20", 24"
End connectionFlanged (ASME Class 125/150)
Pressure Rating200 PSI
FinishE-Nickel Disc
MountingLug Style.
