DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOLD-2022/2122 Large DiameterLD-2022/2122

NIBCO Butterfly Valve (Valves). Model LD-2022/LD-2122. Ductile Iron Body ASTM A536 grade 65-45-12; Stainless Steel Disc ASTM A351 CF8M; EPDM or Buna-N Liner; 150 PSI bi-directional dead end service rating. material: Ductile Iron Body, Stainless Steel Disc

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLD-2022-2122.pdfData sheet

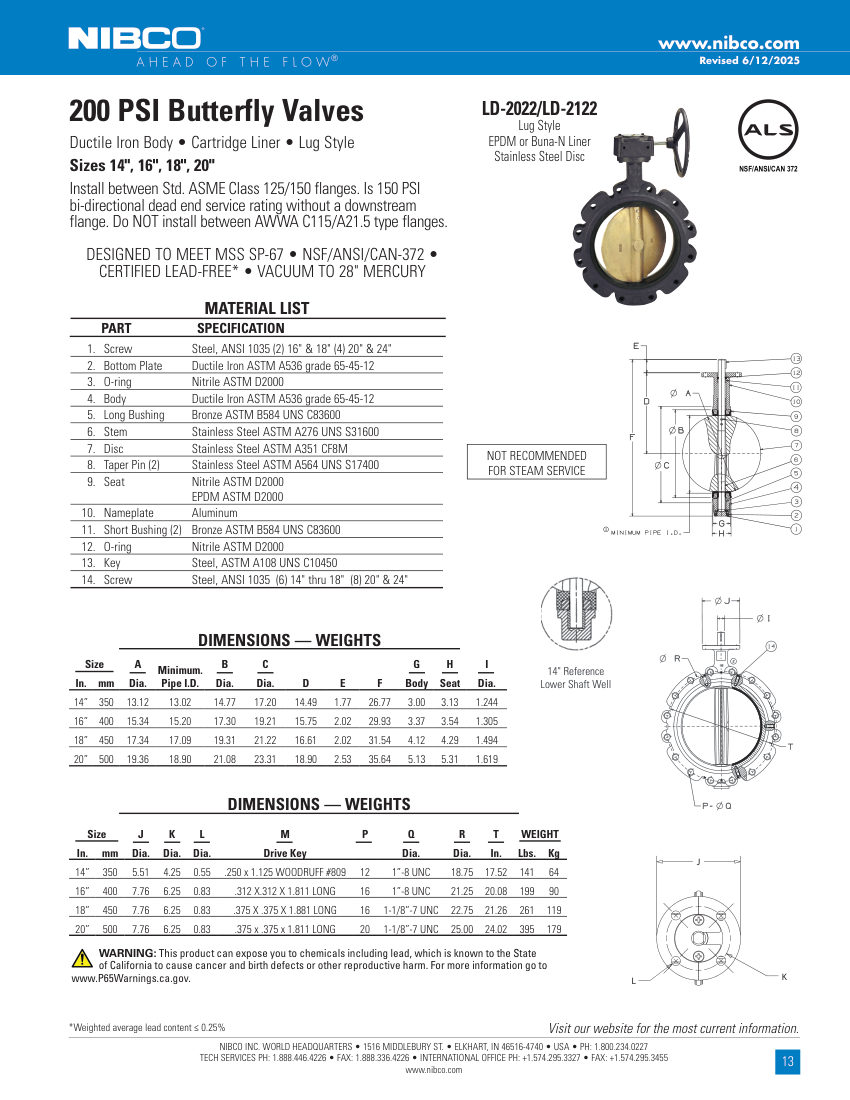

NIBCO LD-2022/2122 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
LD-2022/2122
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLD-2022/2122
DescriptionNIBCO Butterfly Valve (Valves). Model LD-2022/LD-2122. Ductile Iron Body ASTM A536 grade 65-45-12; Stainless Steel Disc ASTM A351 CF8M; EPDM or Buna-N Liner; 150 PSI bi-directional dead end service rating. material: Ductile Iron Body, Stainless Steel Disc
Connection size14", 16", 18", 20"
End connectionLug Style
Pressure Rating200 PSI
MountingInstall between Std. ASME Class 125/150 flanges
DimensionsSee dimension table for sizes 14"-20".

Also cataloged as: LD-2022-2122-Large-Diameter
