DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOMTS/TS/PCS-1805/1805R-LF20/LF66

NIBCO Fixed Orifice Circuit Balancing Valve (Circuit Balancing Valve). Model MTS/TS/PCS-1805/1805R-LF20/LF66. Lead-free DZR Brass body; Sizes range from 1/2" to 2"; Flow range 0.24 to 80 gpm depending on venturi; Includes 1/4" NPT test point ports. material: DZR Brass (UNS C46500), Stainless Steel (UNS S30400), PTFE, EPDM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFMTS-TS-PCS-1805-1805R-LF20-LF66.pdfData sheet

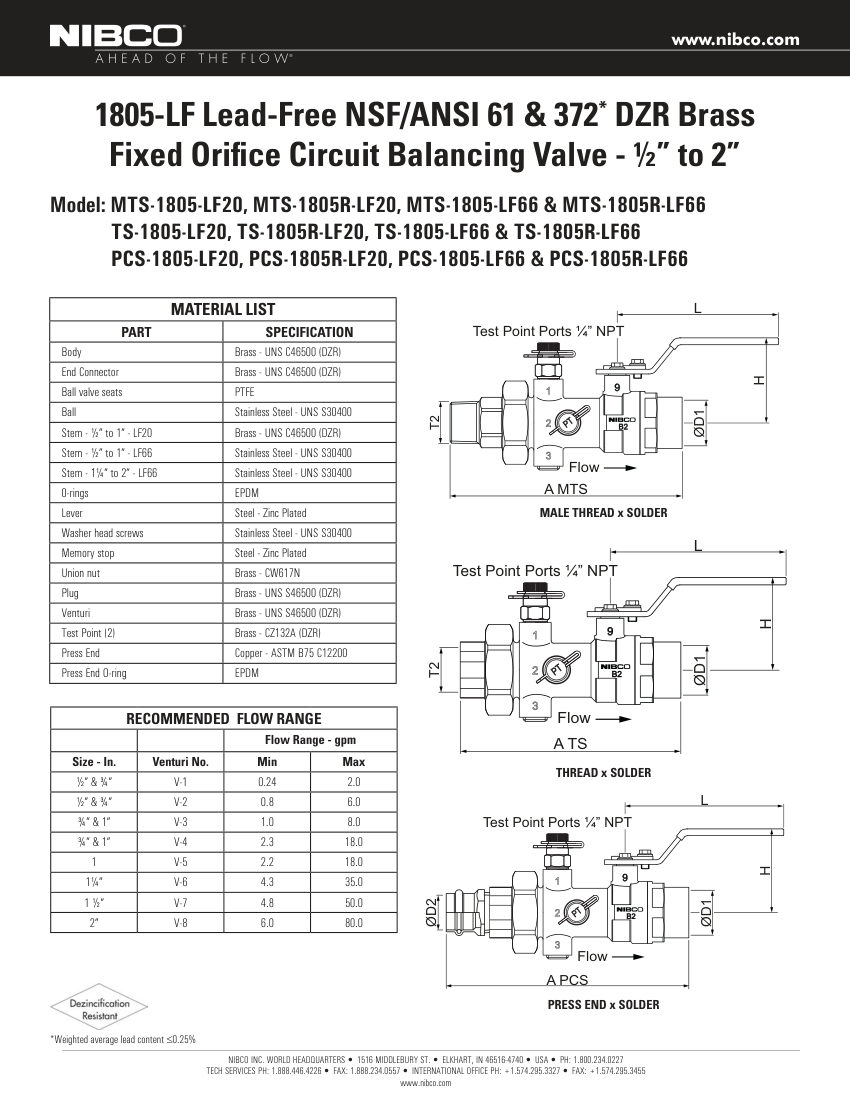

NIBCO MTS/TS/PCS-1805/1805R-LF20/LF66 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
MTS/TS/PCS-1805/1805R-LF20/LF66
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberMTS/TS/PCS-1805/1805R-LF20/LF66
DescriptionNIBCO Fixed Orifice Circuit Balancing Valve (Circuit Balancing Valve). Model MTS/TS/PCS-1805/1805R-LF20/LF66. Lead-free DZR Brass body; Sizes range from 1/2" to 2"; Flow range 0.24 to 80 gpm depending on venturi; Includes 1/4" NPT test point ports. material: DZR Brass (UNS C46500), Stainless Steel (UNS S30400), PTFE, EPDM
Connection size1/2" to 2"
End connectionMale Thread x Solder, Thread x Solder, Press End x Solder
Flow Rate0.24 to 80 gpm
ComplianceNSF/ANSI 61 & 372, Lead-Free (≤0.25%).
