DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCON-2002

NIBCO Butterfly Valve (Butterfly Valves). Model N-2002. Extended Neck design; Cartridge Seat Liner (EPDM or Buna); Bi-directional dead end service rating; Vacuum rating to 28" Mercury. material: Cast Iron Body, Aluminum Bronze or Ductile Iron Disc

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFN-2002.pdfData sheet

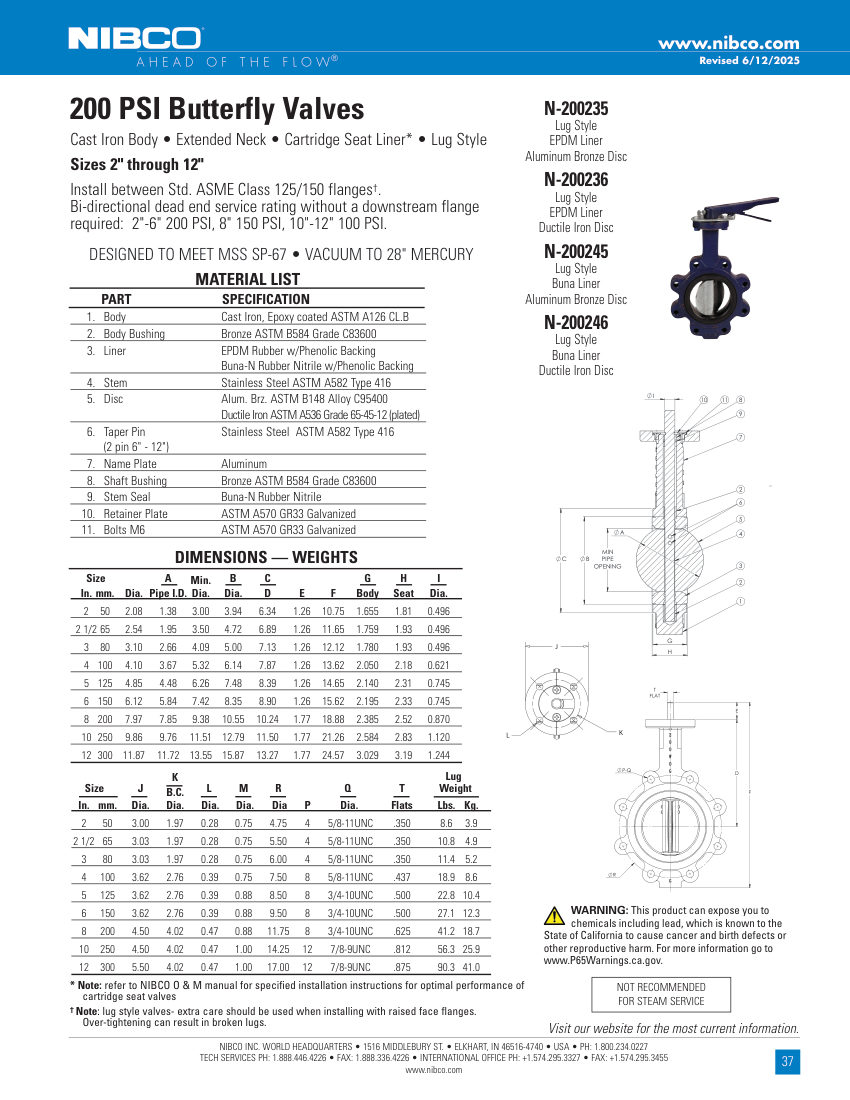

NIBCO N-2002 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
N-2002
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberN-2002
DescriptionNIBCO Butterfly Valve (Butterfly Valves). Model N-2002. Extended Neck design; Cartridge Seat Liner (EPDM or Buna); Bi-directional dead end service rating; Vacuum rating to 28" Mercury. material: Cast Iron Body, Aluminum Bronze or Ductile Iron Disc
Connection size2" through 12"
End connectionLug Style
Pressure Rating200 PSI
FinishEpoxy Coated
MountingBetween Std. ASME Class 125/150 flanges.

Also cataloged as: N-2002-Series
