DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCONPW-980

NIBCO Ductile Iron Silent Check Valve (Check Valve). Model NPW 980. Spring actuated silent check valve; Operating temperature range: -20°C to 120°C; Suitable for water, oil, and steam

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFNPW-980.pdfData sheet

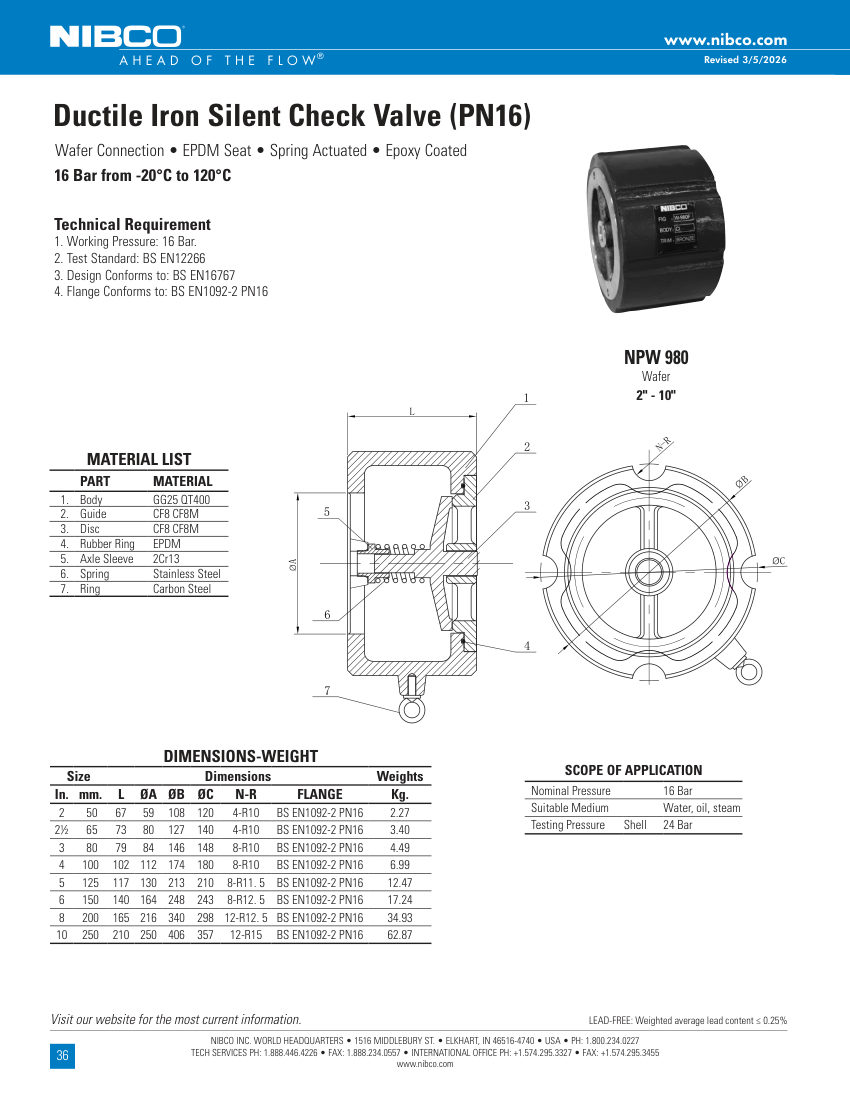

NIBCO NPW-980 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
NPW-980
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberNPW-980
DescriptionNIBCO Ductile Iron Silent Check Valve (Check Valve). Model NPW 980. Spring actuated silent check valve; Operating temperature range: -20°C to 120°C; Suitable for water, oil, and steam
Shell test pressure24 Bar. material: Ductile Iron (GG25 QT400) Body, Stainless Steel Disc/Guide, EPDM Seat
Connection size2" - 10" (50mm - 250mm)
End connectionWafer
Pressure RatingPN16 (16 Bar)
FinishEpoxy Coated
MountingWafer.
