DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED
NIBCOPC603-4XLC_Zspec
NIBCO Brass Adapter (Pro-Connect Press). Model PC603-4XLC. Forged DZR Brass body; EPDM O-ring; Zinc coated manganese steel grip ring; Max temperature 250°F. material: Lead-Free DZR Brass
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- NIBCO
- Catalog no.
- PC603-4XLC_Zspec
- Product type
- Plumbing/Valves
- MasterFormat
- 22

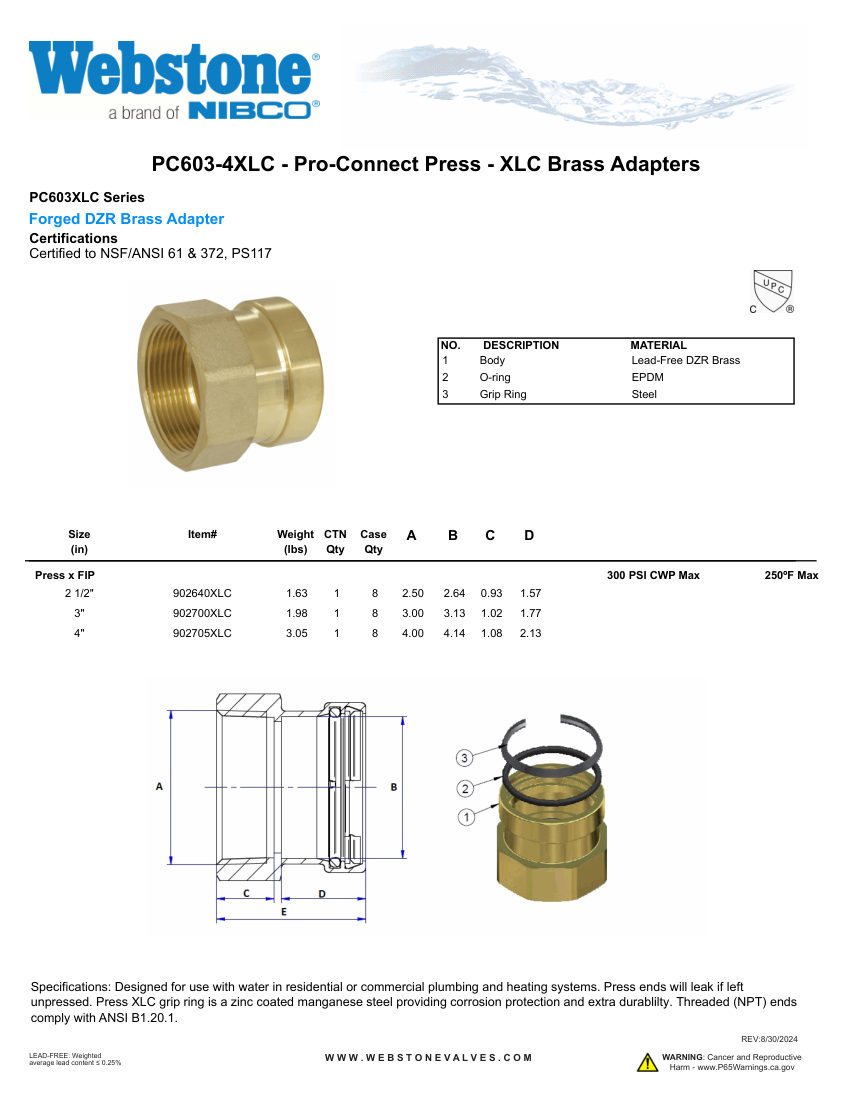

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | PC603-4XLC_Zspec |
|---|---|
| Description | NIBCO Brass Adapter (Pro-Connect Press). Model PC603-4XLC. Forged DZR Brass body; EPDM O-ring; Zinc coated manganese steel grip ring; Max temperature 250°F. material: Lead-Free DZR Brass |
| Connection size | 2 1/2" - 4" |
| End connection | Press x FIP / Press x MIP |
| Pressure Rating | 300 PSI CWP Max |
| Dimensions | A: 2.50-4.00 in, B: 2.64-4.14 in, C: 0.93-1.08 in, D: 1.57-2.13 in |
| Compliance | NSF/ANSI 61 & 372, PS117, ANSI B1.20.1. |
Also cataloged as: PC603
