DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOPCH203 1/2

NIBCO Carbon Steel Press Fitting (Press Connect Fittings). Model BenchPressG. Designed for Schedule 10 to 40 steel pipe (ASTM A53, A106, A135, A795); Operating temperature range: -40°F to 180°F; Compatible with HNBR sealing elements; Approved for above and below ground applications. material: Carbon Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPCH203-1-2.pdfData sheet

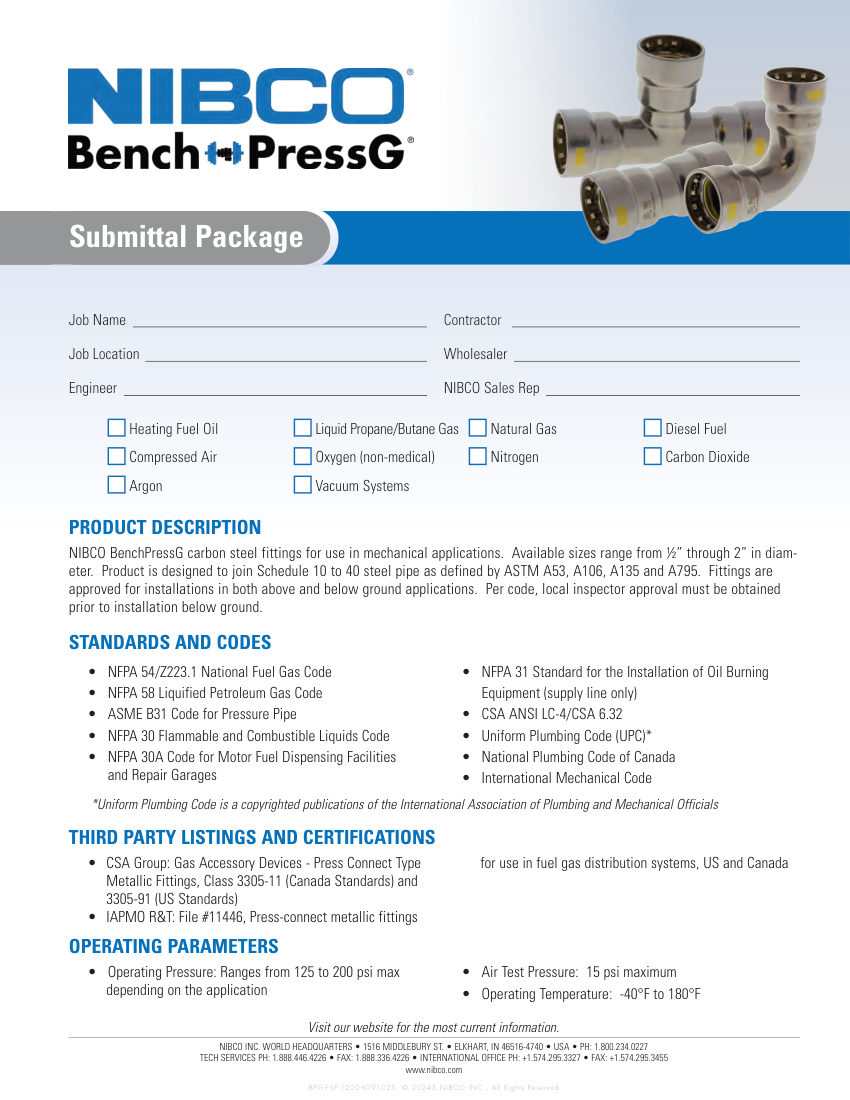

NIBCO PCH203 1/2 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
PCH203 1/2
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPCH203 1/2
DescriptionNIBCO Carbon Steel Press Fitting (Press Connect Fittings). Model BenchPressG. Designed for Schedule 10 to 40 steel pipe (ASTM A53, A106, A135, A795); Operating temperature range: -40°F to 180°F; Compatible with HNBR sealing elements; Approved for above and below ground applications. material: Carbon Steel
Connection size1/2" to 2"
End connectionPress Connect
Pressure Rating125 to 200 psi max
ComplianceNFPA 54, NFPA 58, ASME B31, CSA 3305-11, IAPMO R&T #11446.

Also cataloged as: PCH203 3/4, PCH203 3/4 x 1/2, PCH203 1, PCH203 1 x 1/2, PCH203 1 x 3/4, PCH203 1 1/4, PCH203 1 1/2, PCH203 2, PCH203 2 x 1/2, PCH203 2 x 3/4, PCH203 2 x 1
