DIV 22 · PLUMBINGGENERAL PRODUCTCUT SHEET INDEXED
NIBCOT-113

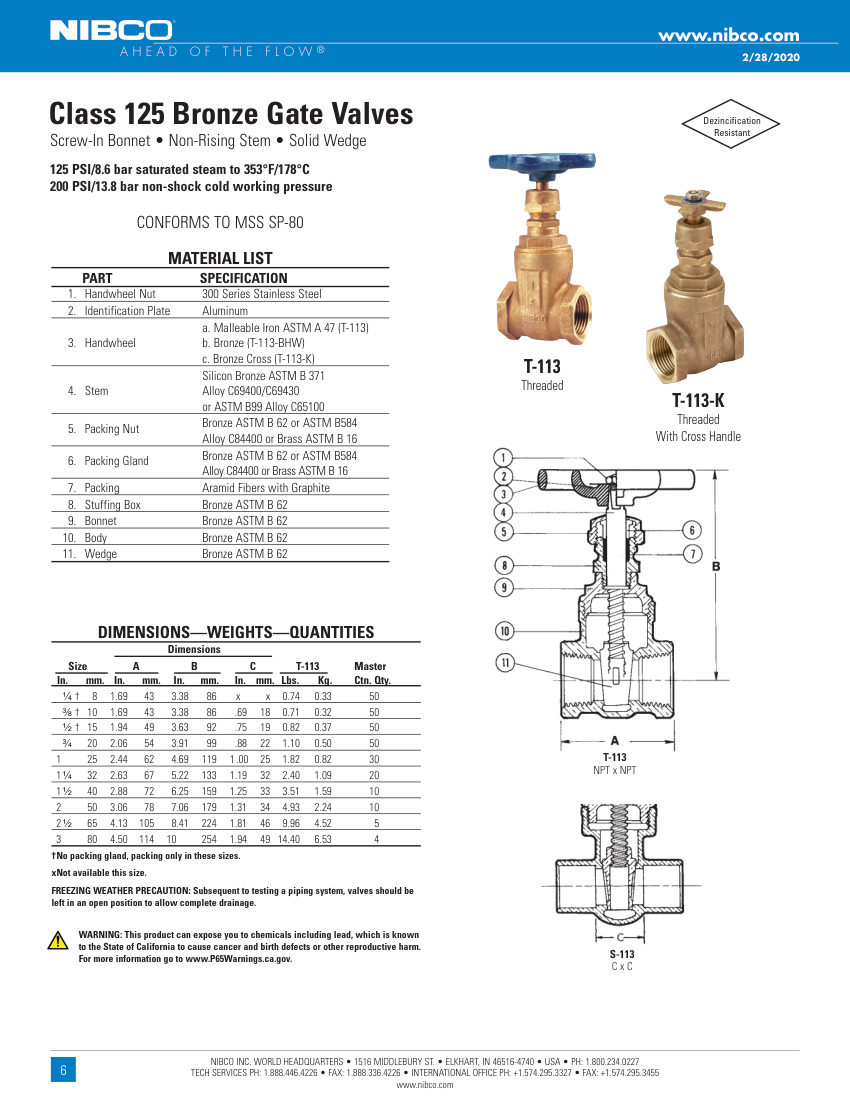

NIBCO Gate Valve (Valves). Model T-113. Screw-In Bonnet; Non-Rising Stem; Solid Wedge; Dezincification Resistant. material: Bronze ASTM B 62
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- NIBCO
- Catalog no.
- T-113
- Product type
- General Product
- MasterFormat
- 22
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | T-113 |
|---|---|
| Description | NIBCO Gate Valve (Valves). Model T-113. Screw-In Bonnet; Non-Rising Stem; Solid Wedge; Dezincification Resistant. material: Bronze ASTM B 62 |
| Connection size | 2 inch |
| End connection | NPT x NPT |
| Pressure Rating | 125 PSI/8.6 bar saturated steam to 353°F/178°C; 200 PSI/13.8 bar non-shock cold working pressure |
| Dimensions | A: 3.06 in (78 mm), B: 7.06 in (179 mm), C: 1.31 in (34 mm) |
| Compliance | MSS SP-80. |
