NIBCOT048080 PP
NIBCO Copper press fittings (Copper Press Connection System). Model PressACR. Utilizes gray HNBR sealing element
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- NIBCO
- Catalog no.
- T048080 PP
- Product type
- Plumbing/Valves
- MasterFormat
- 22

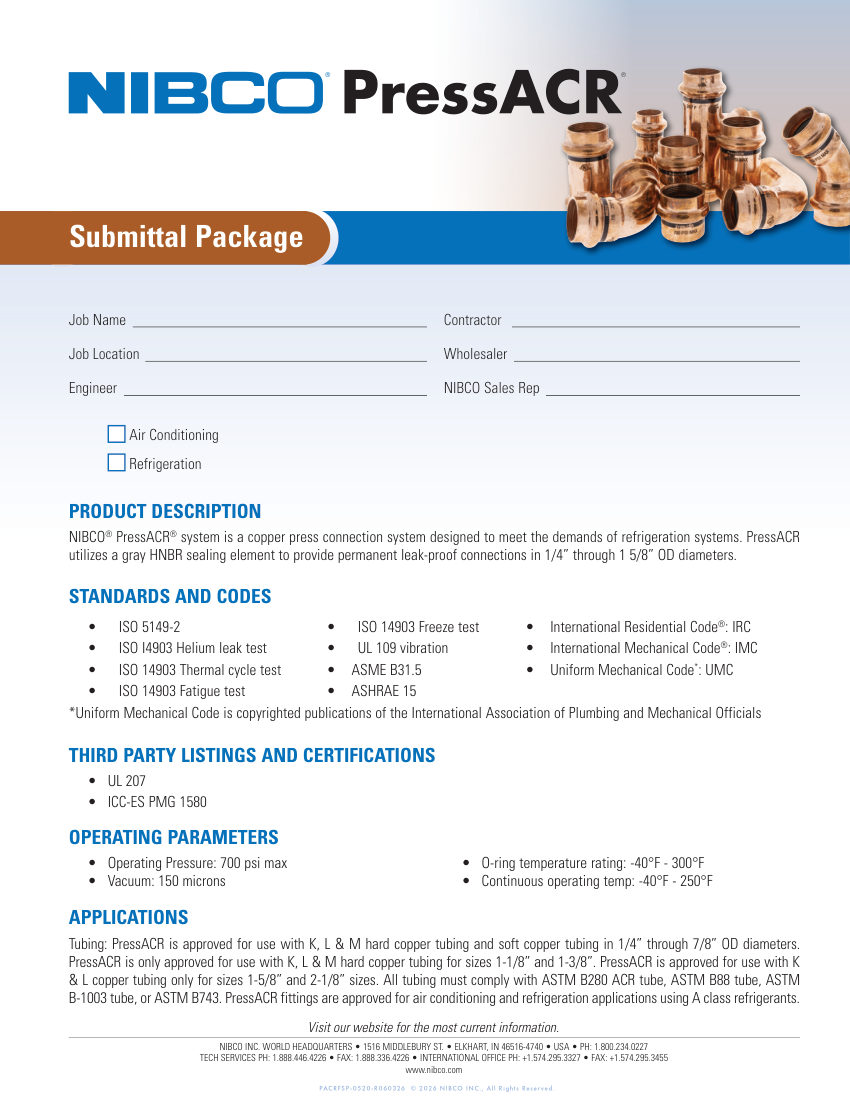

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | T048080 PP |
|---|---|
| Description | NIBCO Copper press fittings (Copper Press Connection System). Model PressACR. Utilizes gray HNBR sealing element |
| Vacuum rating | 150 microns; Continuous operating temperature: -40°F to 250°F; Approved for A class refrigerants. material: Copper |
| Connection size | 1/4" through 2 1/8" OD |
| End connection | Press |
| Pressure Rating | 700 psi max |
| Compliance | UL 207, ICC-ES PMG 1580, ISO 5149-2, ASME B31.5, ASHRAE 15. |
Also cataloged as: T048081 PP, T048082 PP, T048083 PP, T048084 PP, T048085 PP, T048086 PP, T048090 PP, T048087 PP, T048088 PP, T048076 PP, T048091 PP
