DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOWD-4863-8N

NIBCO Ductile Iron Wafer Body Butterfly Valve (Butterfly Valve). Model WD-4863-8N. Rated operating pressure 300 PSI at 32°F to 180°F; Disc is EPDM encapsulated ductile iron; Body is ductile iron coated with fusion bonded epoxy; Furnished with or without supervisory switches. material: Ductile Iron ASTM A536 65-45-12, EPDM Coated Disc

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFWD-4863-8N.pdfData sheet

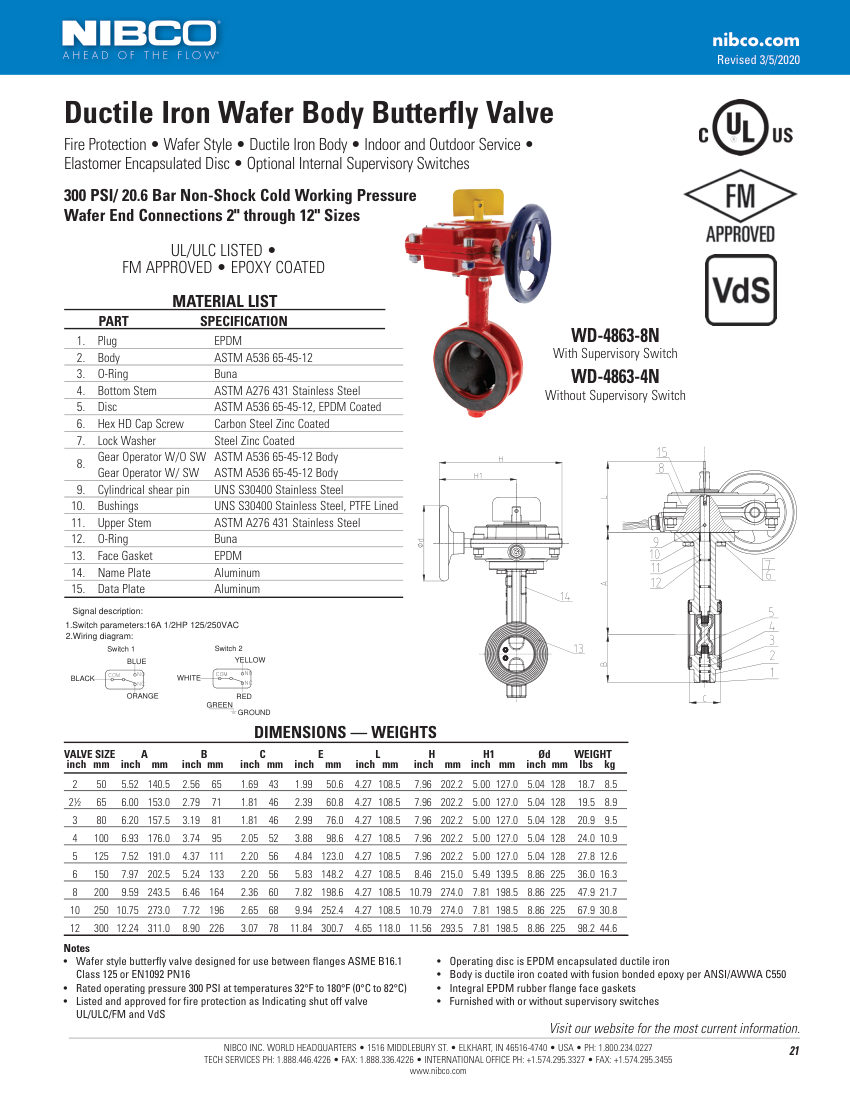

NIBCO WD-4863-8N cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
WD-4863-8N
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberWD-4863-8N
DescriptionNIBCO Ductile Iron Wafer Body Butterfly Valve (Butterfly Valve). Model WD-4863-8N. Rated operating pressure 300 PSI at 32°F to 180°F; Disc is EPDM encapsulated ductile iron; Body is ductile iron coated with fusion bonded epoxy; Furnished with or without supervisory switches. material: Ductile Iron ASTM A536 65-45-12, EPDM Coated Disc
Connection size2" through 12"
End connectionWafer
Pressure Rating300 PSI / 20.6 Bar
FinishEpoxy Coated
MountingWafer Style.
