NIBCOWDB-1000
NIBCO Butterfly Valve (Valves). Model WDB-1000/NE 200-136. Pressure rating PN16 (16 Bar); Temperature range -30°C to 110°C; Seat material EPDM; Body material Ductile Iron GJS-400-15. material: Ductile Iron GJS-400-15, EPDM Seat, Stainless Steel 416 Stem
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- NIBCO
- Catalog no.
- WDB-1000
- Product type
- Plumbing/Valves
- MasterFormat
- 22

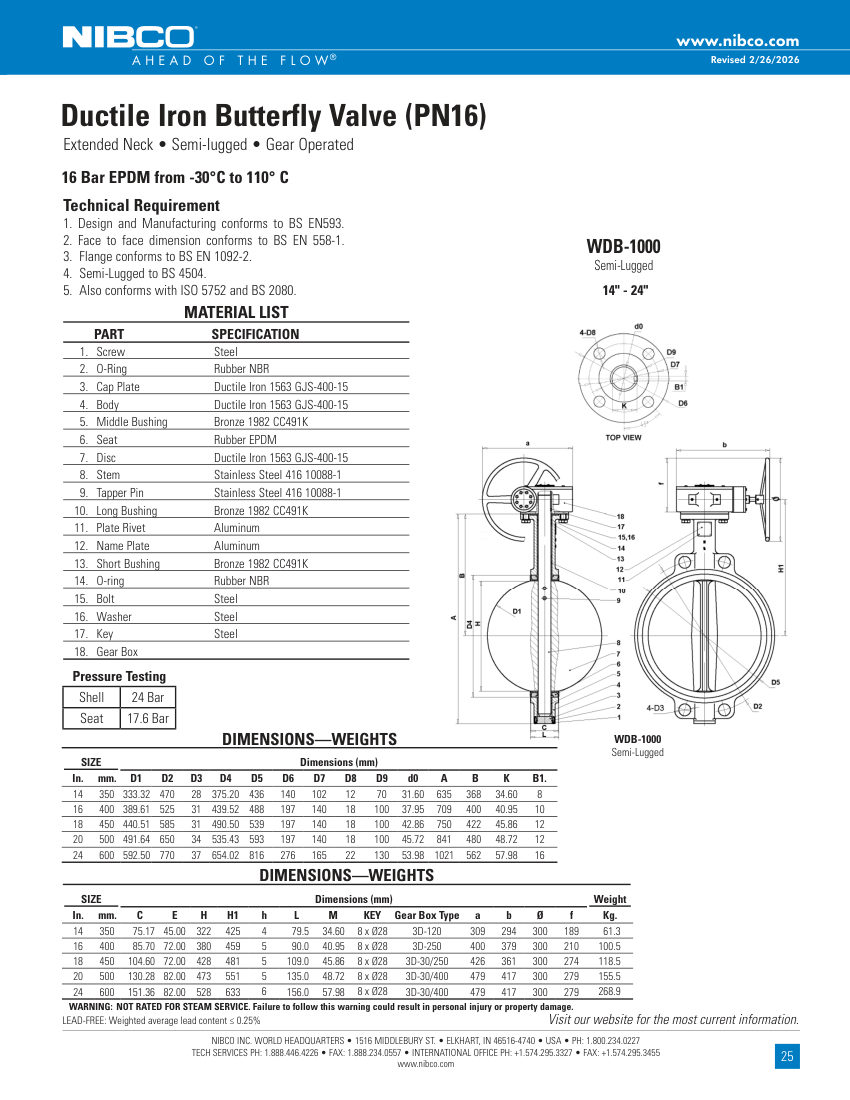

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | WDB-1000 |
|---|---|
| Description | NIBCO Butterfly Valve (Valves). Model WDB-1000/NE 200-136. Pressure rating PN16 (16 Bar); Temperature range -30°C to 110°C; Seat material EPDM; Body material Ductile Iron GJS-400-15. material: Ductile Iron GJS-400-15, EPDM Seat, Stainless Steel 416 Stem |
| Connection size | 14" - 24" (350mm - 600mm) |
| End connection | Semi-Lugged Flange |
| Pressure Rating | PN16 (16 Bar) |
| Mounting | Extended Neck, Gear Operated |
| Dimensions | Face to face per BS EN 558-1. |
