DIV 28 · ELECTRONIC SAFETY & SECURITYFIRE ALARM INITIATING DEVICESCUT SHEET INDEXED

Notifier9400XA

Notifier Aspirating Smoke Detector (FAAST Series). Model 7100X, 7100XA, 8100, 8100A, 9400X, 9400XA. Dual-source optical smoke detection (blue LED and infrared laser)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

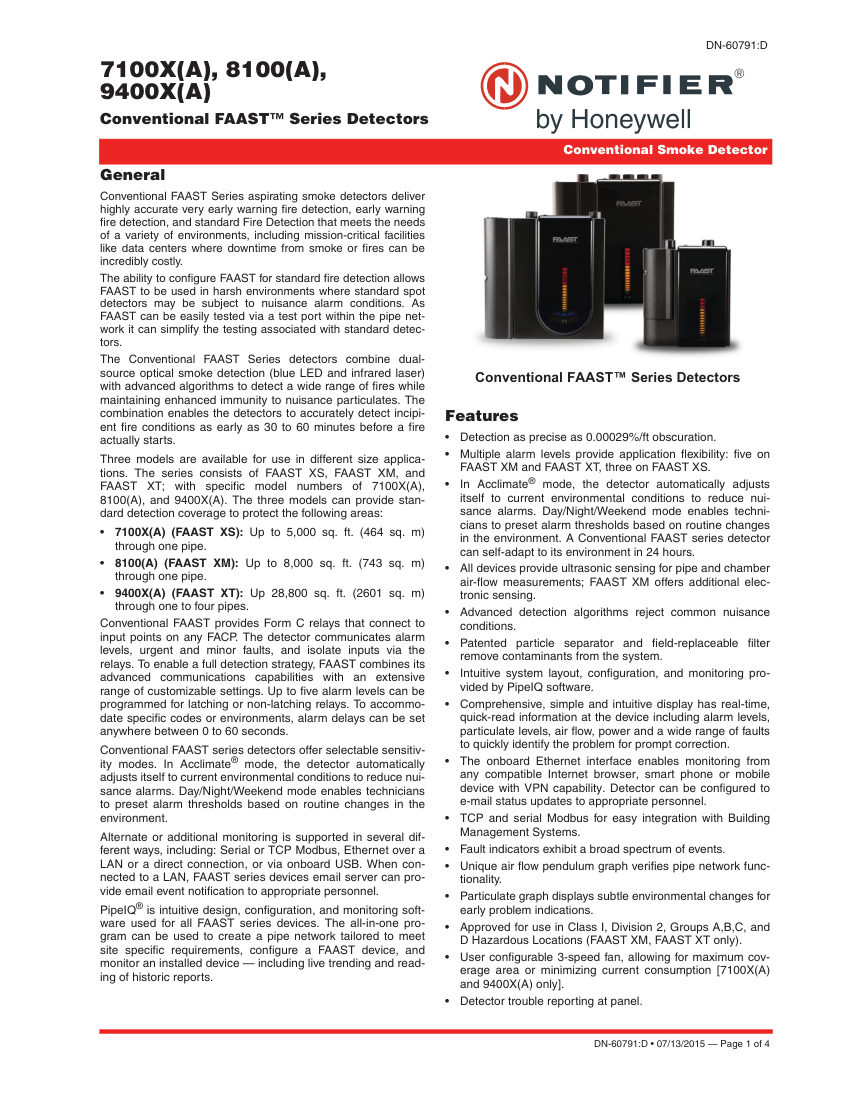

PDF9400XA.pdfData sheet
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Notifier
Catalog no.
9400XA
Product type
Fire Alarm Initiating Devices
MasterFormat
28 31 23
Cut sheet
PDF · manufacturer current

Product details

Catalog number9400XA
DescriptionNotifier Aspirating Smoke Detector (FAAST Series). Model 7100X, 7100XA, 8100, 8100A, 9400X, 9400XA. Dual-source optical smoke detection (blue LED and infrared laser)
Sensitivity range0.00029%/ft to 6.25%/ft obscuration; Coverage up to 5,000 sq. ft. (XS), 8,000 sq. ft. (XM), or 28,800 sq. ft. (XT); Form C relays for FACP integration. connectionSize: 1.050 inches IPS (25 mm) outside pipe diameter
End connectionPipe network
Flow Rate0-4,000 ft./min (0-1,219 m/min)
Dimensions11.0 in x 9.0 in x 6.25 in (27.9 cm x 22.9 cm x 15.9 cm) for 7100X(A)
ComplianceUL 864, UL 1481, Class I Div 2
