nVent HOFFMAN Square-Hole Rack Angles (Rack Angles). Model A18RA19THE. Designed to accept metric or English cage nuts; 19-inch rack angle system
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- nVent HOFFMAN
- Catalog no.
- A18RA19THE
- Product type
- Electrical
- MasterFormat
- 26
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | A18RA19THE |
|---|---|
| Description | nVent HOFFMAN Square-Hole Rack Angles (Rack Angles). Model A18RA19THE. Designed to accept metric or English cage nuts; 19-inch rack angle system |
| Pack quantity | 1 pair; Requires frame reducing brackets (22510287) for 800 mm wide enclosures. material: 2.0 mm plated steel |
| Finish | plated |
| Mounting | Fixed directly into 600 mm wide Uni body enclosure's channels |
| Dimensions | Height: 1800 mm, Width: 600 mm, U: 36. |

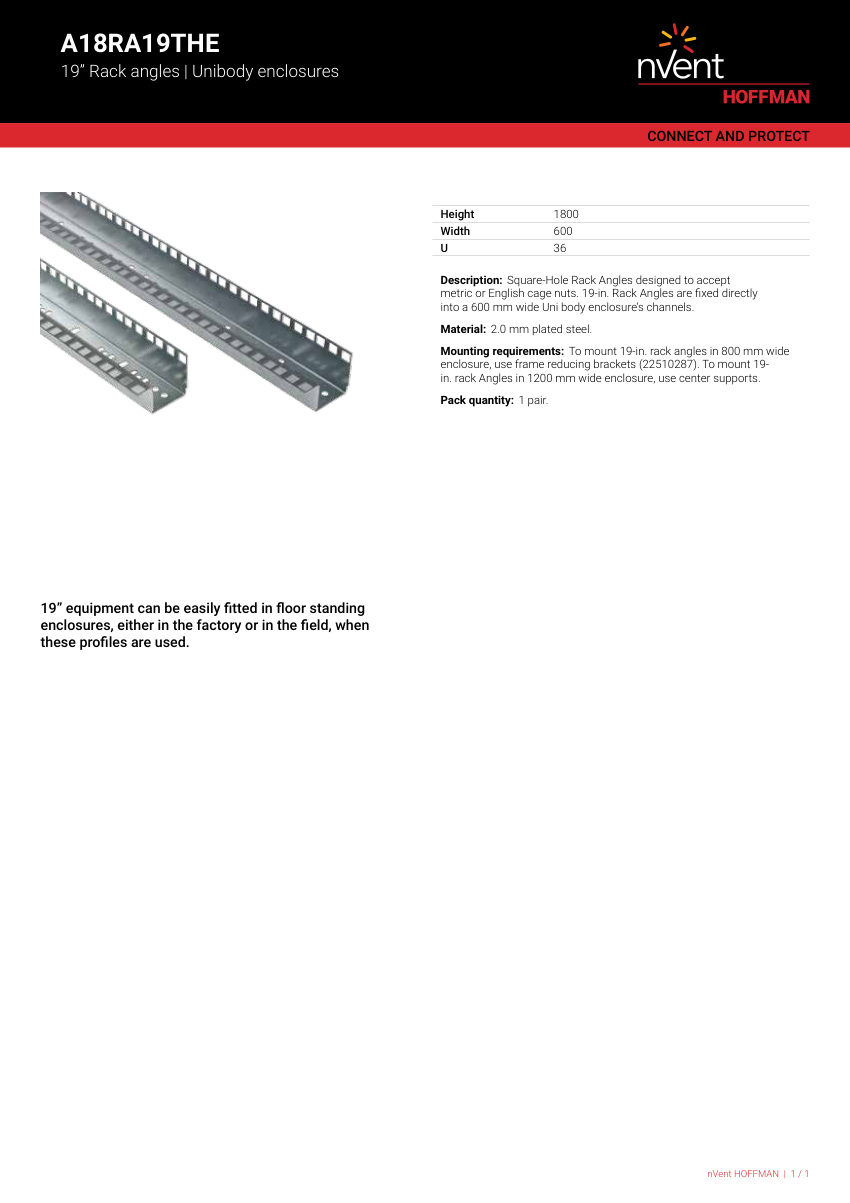

- Official cut sheet, indexed
