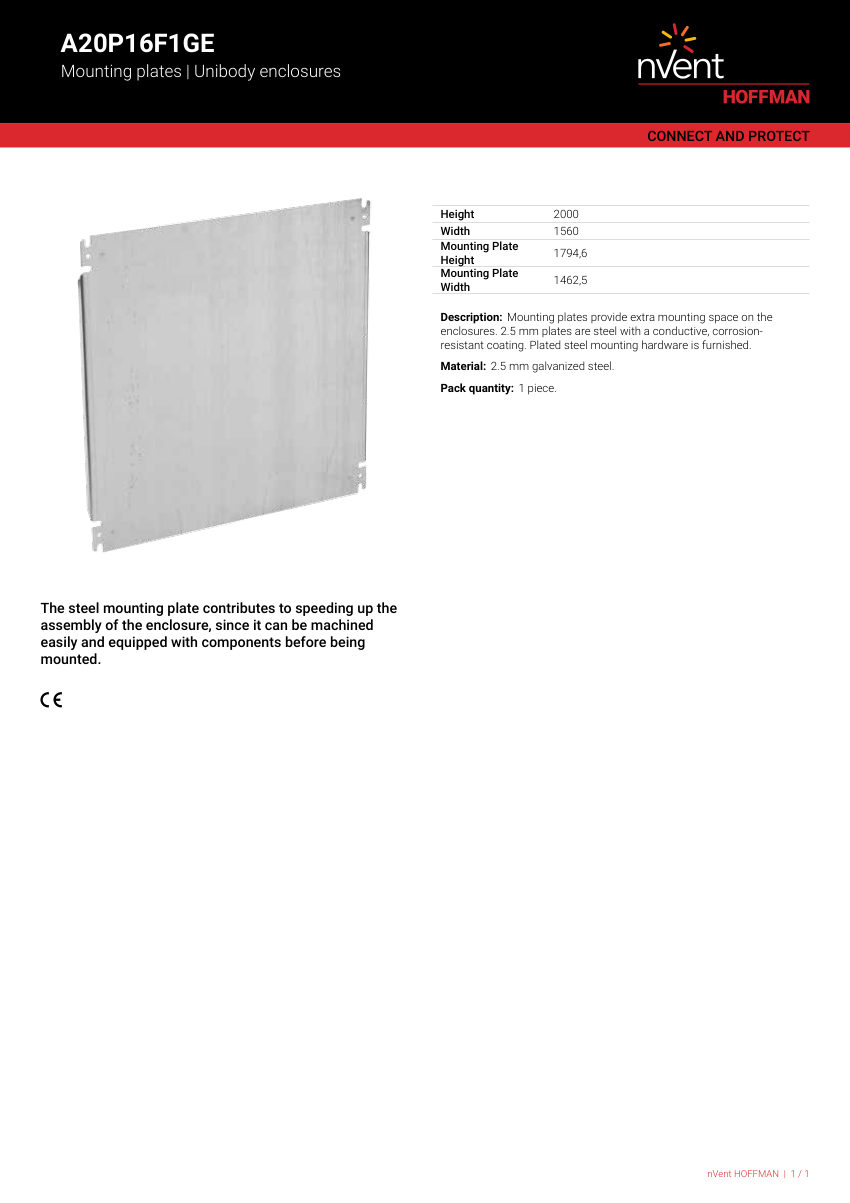

nVent HOFFMANa20p16f1ge-englishA20P16F1GE
nVent HOFFMAN Mounting plate (Mounting plates). Model A20P16F1GE. Material: 2.5 mm galvanized steel
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- nVent HOFFMAN
- Catalog no.
- A20P16F1GE
- Product type
- Electrical
- MasterFormat
- 26
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | A20P16F1GE |
|---|---|
| Description | nVent HOFFMAN Mounting plate (Mounting plates). Model A20P16F1GE. Material: 2.5 mm galvanized steel |
| Plate dimensions | 1794.6 mm x 1462.5 mm |
| Enclosure dimensions | 2000 mm x 1560 mm; Includes plated steel mounting hardware. material: 2.5 mm galvanized steel |
| Finish | conductive, corrosion-resistant coating |
| Mounting | Unibody enclosures |
| Dimensions | Height 2000 mm, Width 1560 mm, Mounting Plate Height 1794.6 mm, Mounting Plate Width 1462.5 mm. |
