nVent HOFFMANaca05050-englishACA05050
nVent HOFFMAN Display Aluminium Panel (Enclosure Accessories). Model ACA05050. Panel thickness is 3 mm; Frame height is 23.5 mm; Includes 1 double-bit 3 mm lock; Removable for drilling or screen printing. material: Aluminium
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- nVent HOFFMAN
- Catalog no.
- ACA05050
- Product type
- Electrical
- MasterFormat
- 26

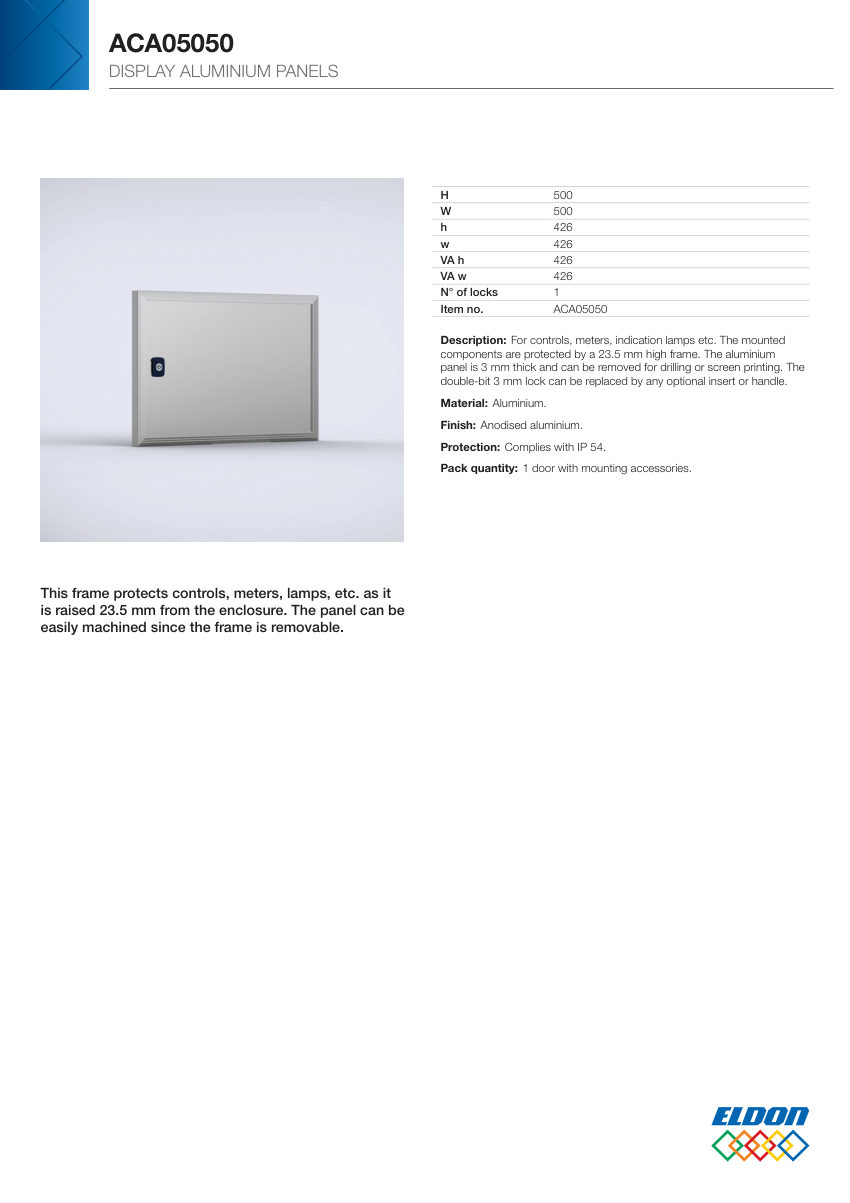

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | ACA05050 |
|---|---|
| Description | nVent HOFFMAN Display Aluminium Panel (Enclosure Accessories). Model ACA05050. Panel thickness is 3 mm; Frame height is 23.5 mm; Includes 1 double-bit 3 mm lock; Removable for drilling or screen printing. material: Aluminium |
| Finish | Anodised aluminium |
| Mounting | 1 door with mounting accessories |
| Dimensions | 500 x 500 mm (H x W), 426 x 426 mm (h x w), 3 mm thick |
| Compliance | IP 54. |
