nVent HOFFMANacm06080r5-englishACM06080R5
nVent HOFFMAN Modular vertical support kit (Modular Support System). Model ACM06080R5. Supports modular panels in 150 mm steps; Provides 46 mm space for equipment; Includes two vertical profiles and blanking plates; Allows pre-wiring outside enclosure. material: 1.35 mm steel plate
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- nVent HOFFMAN
- Catalog no.
- ACM06080R5
- Product type
- Electrical
- MasterFormat
- 26

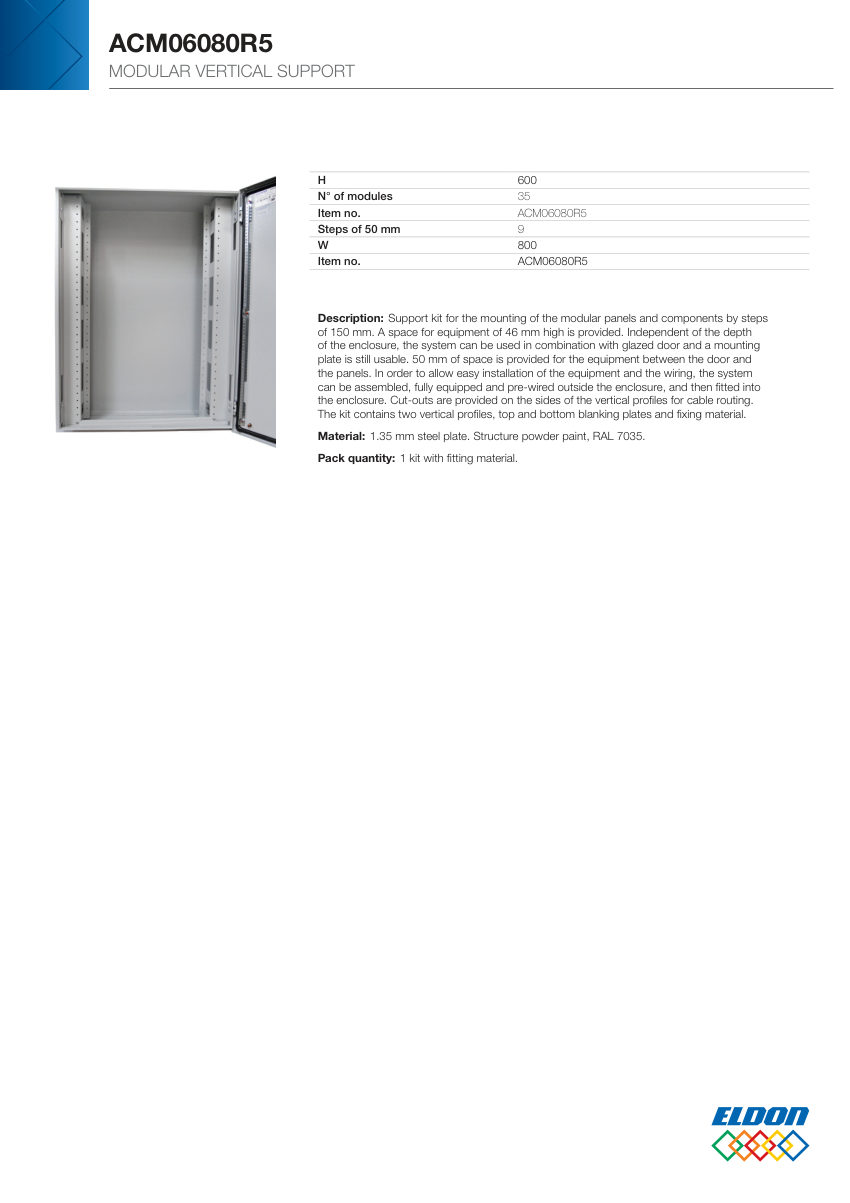

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | ACM06080R5 |
|---|---|
| Description | nVent HOFFMAN Modular vertical support kit (Modular Support System). Model ACM06080R5. Supports modular panels in 150 mm steps; Provides 46 mm space for equipment; Includes two vertical profiles and blanking plates; Allows pre-wiring outside enclosure. material: 1.35 mm steel plate |
| Finish | Powder paint, RAL 7035 |
| Mounting | Vertical profile with 50 mm steps |
| Dimensions | H 600 mm, W 800 mm. |
- Official cut sheet, indexed
- Auto-matched to your schedule
- Cover + TOC, one click
