nVent HOFFMAN Glazed Door (Enclosure Accessories). Model ADC PD. Clear safety glass for component visibility; Interchangeable with nVent HOFFMAN standard locks; Steel thickness varies by enclosure size (1.5mm or 2mm); Available in 6 different size configurations. material: 1.5 mm mild steel / 4 mm clear safety glass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFADCR5.pdfData sheet

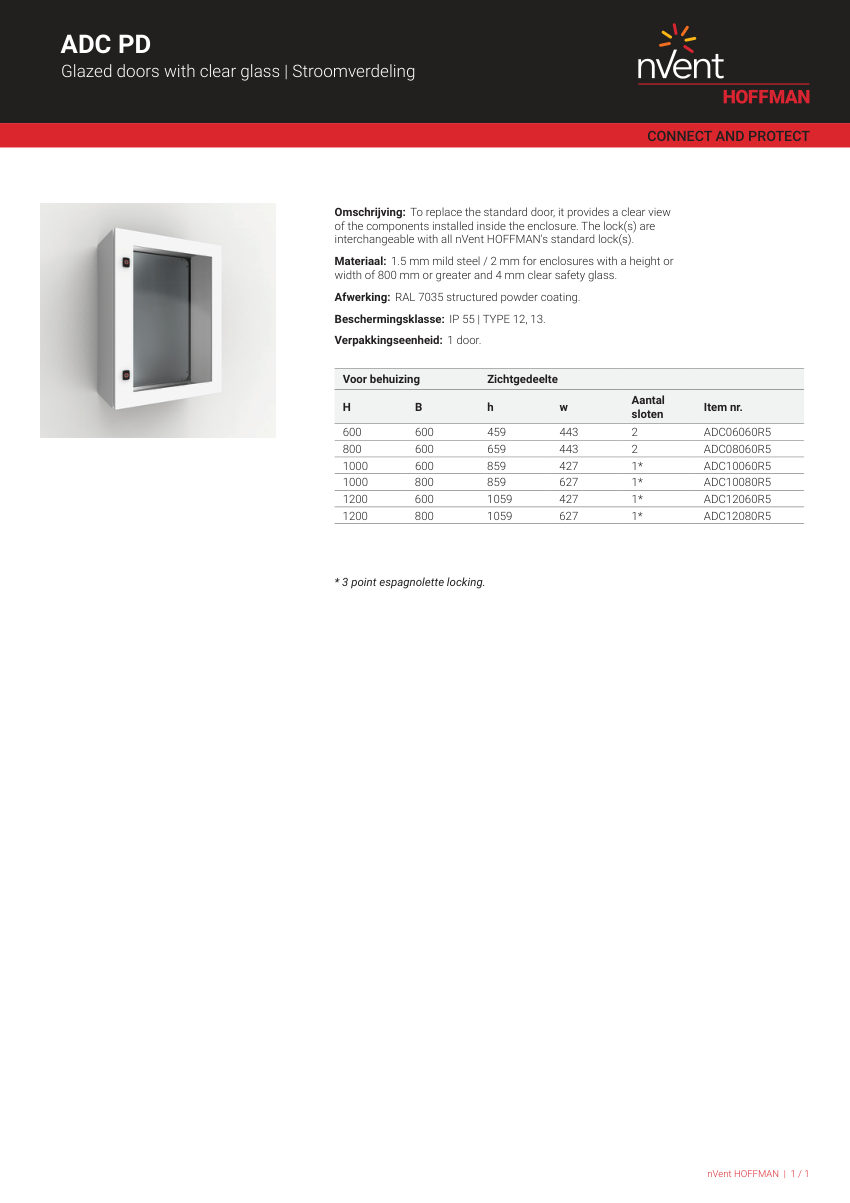

nVent HOFFMAN ADCR5 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
nVent HOFFMAN
Catalog no.
ADCR5
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberADCR5
DescriptionnVent HOFFMAN Glazed Door (Enclosure Accessories). Model ADC PD. Clear safety glass for component visibility; Interchangeable with nVent HOFFMAN standard locks; Steel thickness varies by enclosure size (1.5mm or 2mm); Available in 6 different size configurations. material: 1.5 mm mild steel / 4 mm clear safety glass
FinishRAL 7035 structured powder coating
DimensionsH: 600-1200 mm, B: 600-800 mm
ComplianceIP 55, TYPE 12, 13.

Also cataloged as: ADC06060R5, ADC08060R5, ADC10060R5, ADC10080R5, ADC12060R5, ADC12080R5, ADCR5-060, ADCR5-080, ADCR5-100, ADCR5-120
