nVent HOFFMAN Glazed Door (Enclosure Accessories). Model ADCS. Replaces standard door for clear view of internal components; Locks interchangeable with nVent HOFFMAN standard locks; Stainless steel thickness varies by enclosure size (1.5mm, 2mm); Includes 1 or 2 locks depending on model. material: 1.5 mm AISI 304 stainless steel, 4 mm clear safety glass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFADCS03624.pdfData sheet

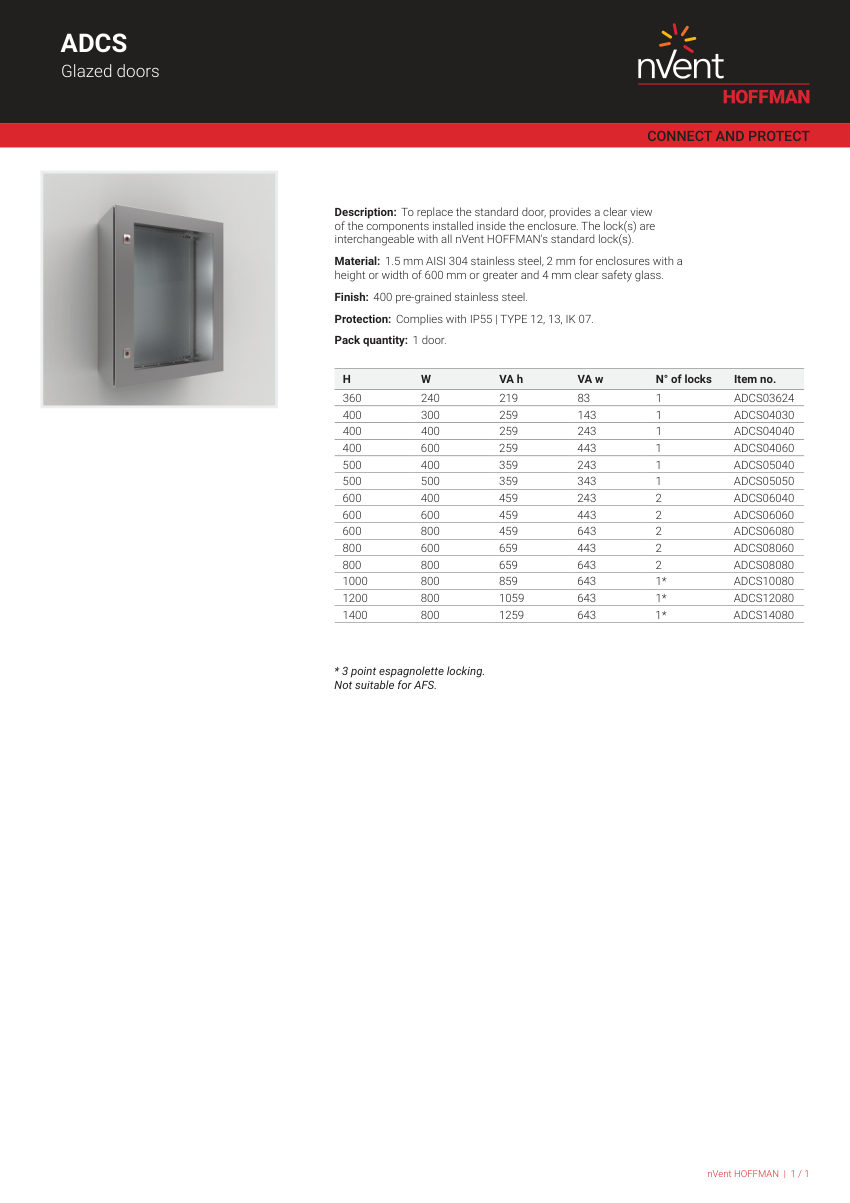

nVent HOFFMAN ADCS03624 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
nVent HOFFMAN
Catalog no.
ADCS03624
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberADCS03624
DescriptionnVent HOFFMAN Glazed Door (Enclosure Accessories). Model ADCS. Replaces standard door for clear view of internal components; Locks interchangeable with nVent HOFFMAN standard locks; Stainless steel thickness varies by enclosure size (1.5mm, 2mm); Includes 1 or 2 locks depending on model. material: 1.5 mm AISI 304 stainless steel, 4 mm clear safety glass
Finish400 pre-grained stainless steel
DimensionsH 360-1400 mm, W 240-800 mm
ComplianceIP55, TYPE 12, 13, IK 07.

Also cataloged as: ADCS04030, ADCS04040, ADCS04060, ADCS05040, ADCS05050, ADCS06040, ADCS06060, ADCS06080, ADCS08060, ADCS08080, ADCS10080
