nVent HOFFMANadienglishADI04030R5
nVent HOFFMAN Inner door (Enclosure Accessories). Model ADI. Usable depth between inner and external door: 35 mm
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- nVent HOFFMAN
- Catalog no.
- ADI04030R5
- Product type
- Electrical
- MasterFormat
- 26

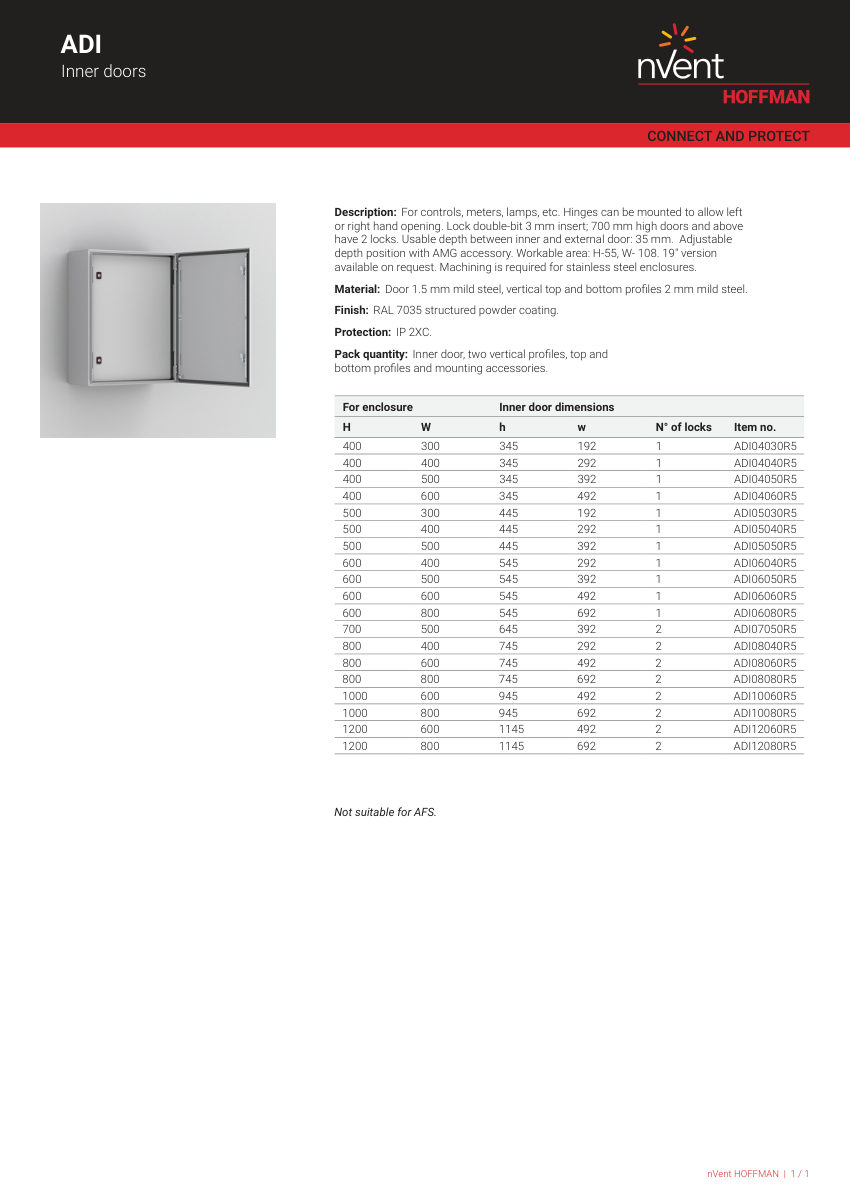

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | ADI04030R5 |
|---|---|
| Description | nVent HOFFMAN Inner door (Enclosure Accessories). Model ADI. Usable depth between inner and external door: 35 mm |
| Workable area | H-55, W-108 |
| Lock | Double-bit 3 mm insert; Doors 700 mm high and above have 2 locks. material: 1.5 mm mild steel (door), 2 mm mild steel (profiles) |
| Finish | RAL 7035 structured powder coating |
| Mounting | Hinges left or right hand opening |
| Dimensions | Varies by enclosure size (e.g., 345x192 mm to 1145x692 mm) |
| Compliance | IP 2XC. |
Also cataloged as: ADI04040R5, ADI04050R5, ADI04060R5, ADI05030R5, ADI05040R5, ADI05050R5, ADI06040R5, ADI06050R5, ADI06060R5, ADI06080R5, ADI07050R5
