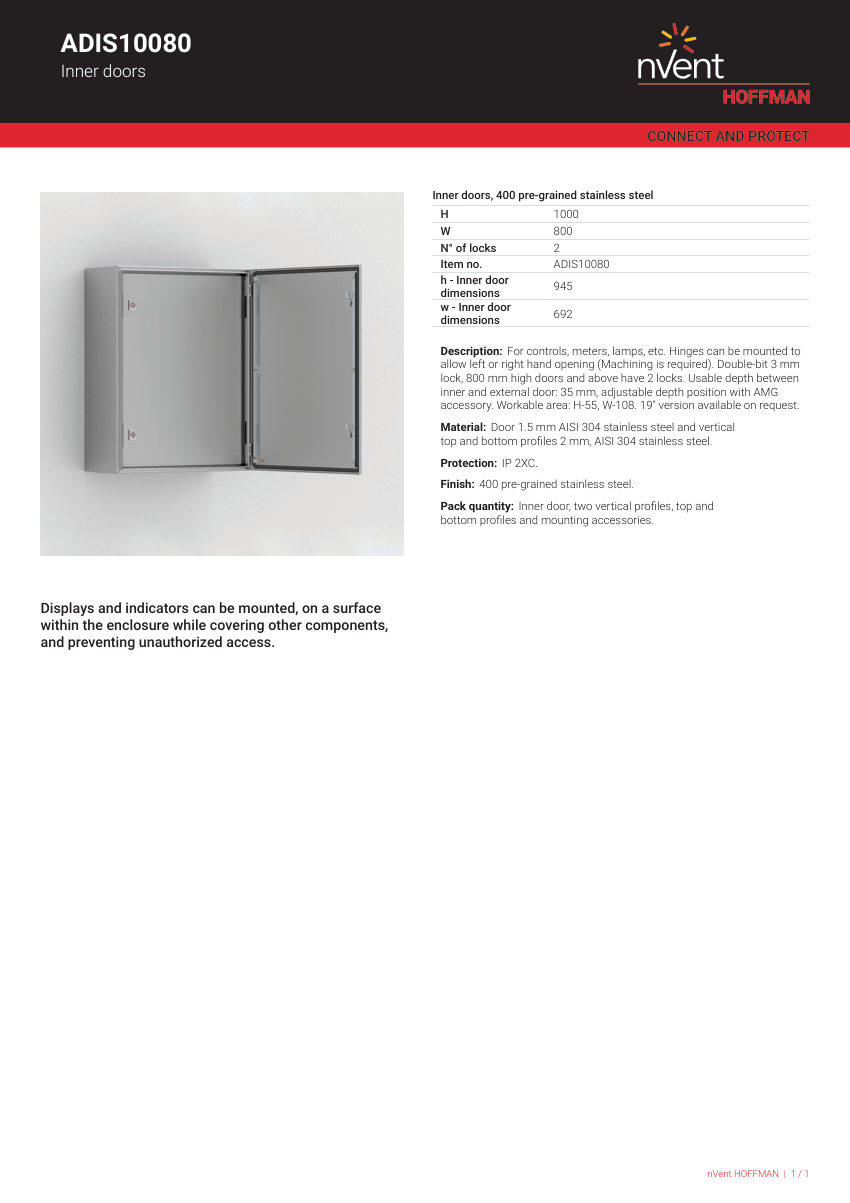

nVent HOFFMANadis10080-englishADIS10080
nVent HOFFMAN Inner Door (Enclosure Accessories). Model ADIS10080. Outer dimensions: 1000 mm (H) x 800 mm (W)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- nVent HOFFMAN
- Catalog no.
- ADIS10080
- Product type
- Electrical
- MasterFormat
- 26
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | ADIS10080 |
|---|---|
| Description | nVent HOFFMAN Inner Door (Enclosure Accessories). Model ADIS10080. Outer dimensions: 1000 mm (H) x 800 mm (W) |
| Inner door dimensions | 945 mm (h) x 692 mm (w) |
| Door thickness | 1.5 mm |
| Profile thickness | 2 mm. material: AISI 304 stainless steel |
| Finish | 400 pre-grained stainless steel |
| Mounting | Hinges mountable left or right (machining required) |
| Dimensions | 1000 x 800 mm |
| Compliance | IP 2XC. |
