nVent HOFFMANADR1201240-316

nVent HOFFMAN Double door wall mounted enclosure (Electrical Enclosure). Model ADR1201240-316. Double door design with 130° opening; Body thickness 1.5 mm, Door thickness 2 mm; Weight 89.70 kg; Includes 1 lock with espagnolette three point locking. material: AISI 316L pre-grained stainless steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFADR1201240-316.pdfData sheet

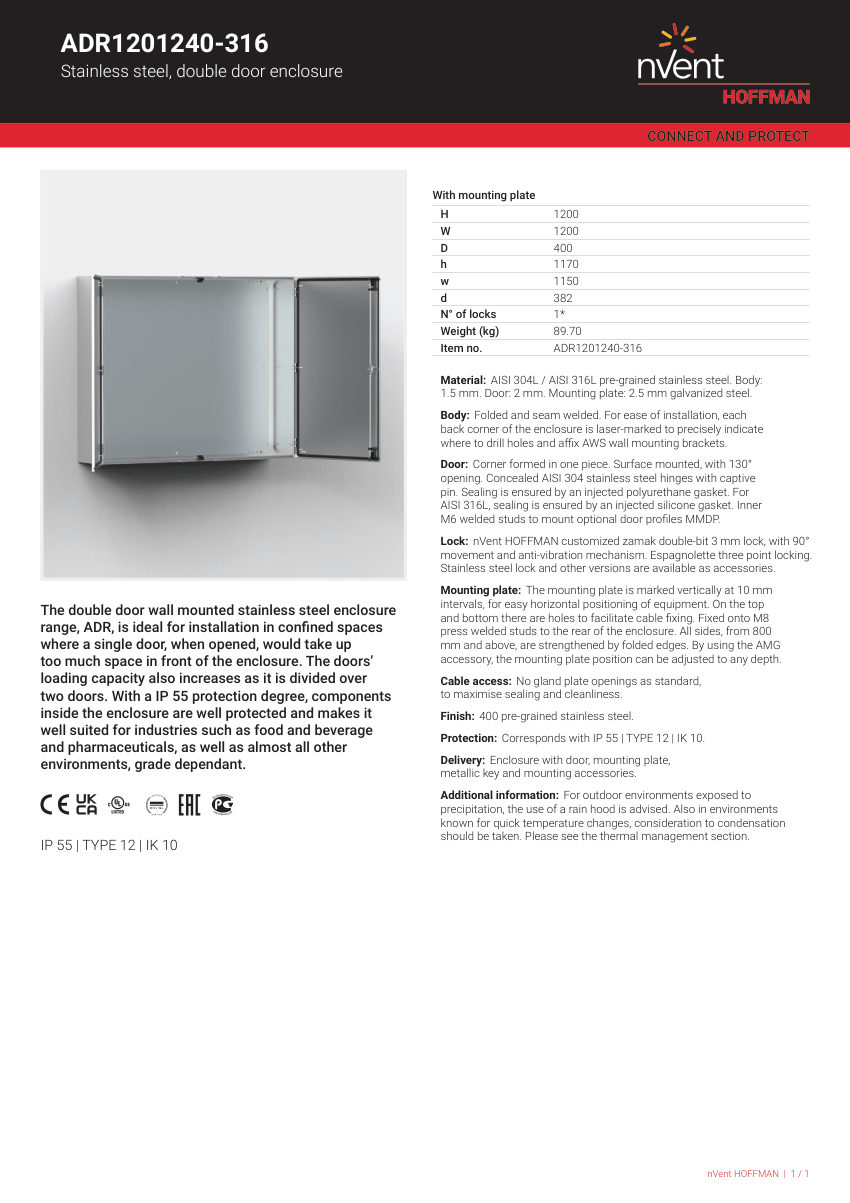

nVent HOFFMAN ADR1201240-316 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
nVent HOFFMAN
Catalog no.
ADR1201240-316
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberADR1201240-316
DescriptionnVent HOFFMAN Double door wall mounted enclosure (Electrical Enclosure). Model ADR1201240-316. Double door design with 130° opening; Body thickness 1.5 mm, Door thickness 2 mm; Weight 89.70 kg; Includes 1 lock with espagnolette three point locking. material: AISI 316L pre-grained stainless steel
Finish400 pre-grained
MountingWall mounted with mounting plate
Dimensions1200 x 1200 x 400 mm
ComplianceIP 55 | TYPE 12 | IK 10.
