DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

nVent HOFFMANadtenglishADT03025R5

nVent HOFFMAN Transparent door (Wall Mounted Enclosures). Model ADT. Provides clear view of internal components; Locks interchangeable with nVent HOFFMAN standard locks; Steel thickness varies by enclosure size (1.2mm to 2mm); Acrylic glass thickness is 3 mm. material: 1.2-2 mm mild steel / 3 mm transparent acrylic glass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFADT03025R5.pdfData sheet

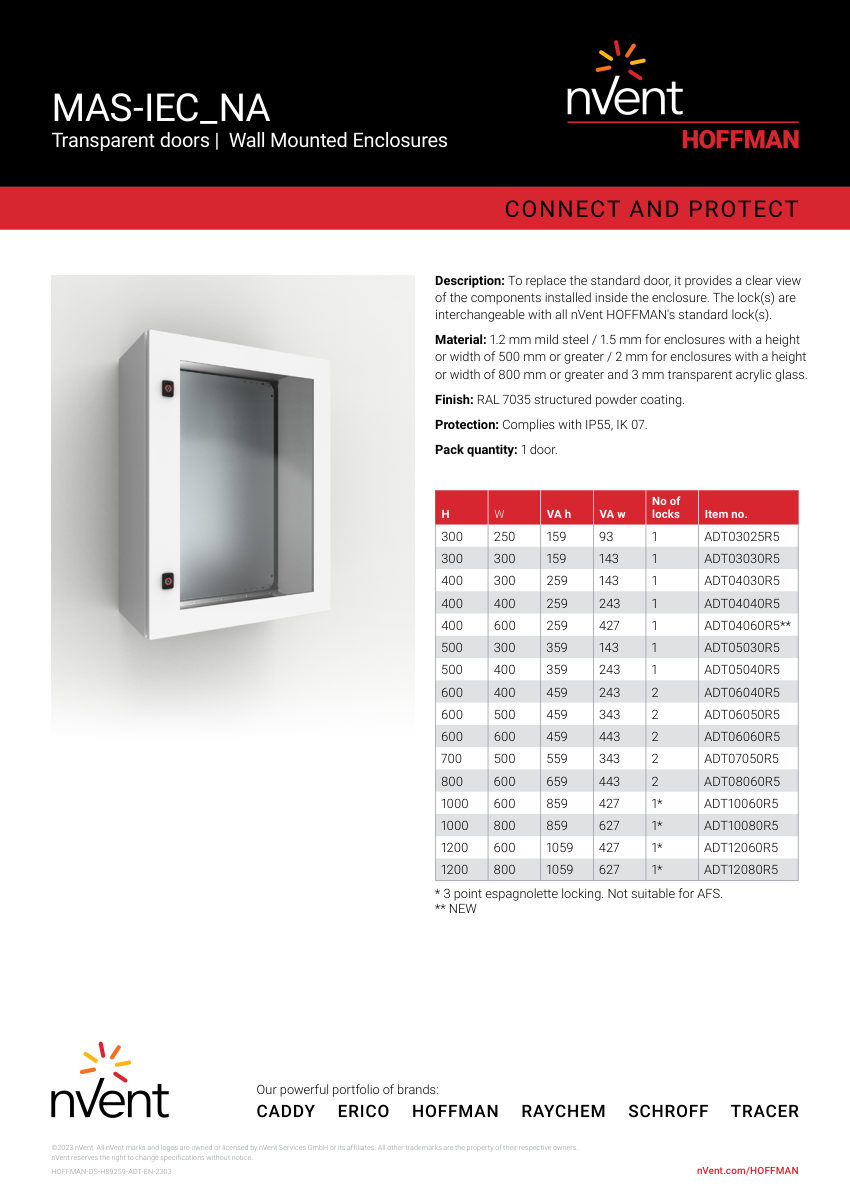

nVent HOFFMAN ADT03025R5 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
nVent HOFFMAN
Catalog no.
ADT03025R5
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberADT03025R5
DescriptionnVent HOFFMAN Transparent door (Wall Mounted Enclosures). Model ADT. Provides clear view of internal components; Locks interchangeable with nVent HOFFMAN standard locks; Steel thickness varies by enclosure size (1.2mm to 2mm); Acrylic glass thickness is 3 mm. material: 1.2-2 mm mild steel / 3 mm transparent acrylic glass
FinishRAL 7035 structured powder coating
MountingWall Mounted
DimensionsH 300-1200 mm, W 250-800 mm
ComplianceIP55, IK 07.

Also cataloged as: ADT03030R5, ADT04030R5, ADT04040R5, ADT04060R5**, ADT05030R5, ADT05040R5, ADT06040R5, ADT06050R5, ADT06060R5, ADT07050R5, ADT08060R5
