nVent HOFFMAN Louvered plate (Ventilated gland plates). Model AFR. Louvered plate pressed out 5 mm
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- nVent HOFFMAN
- Catalog no.
- AFR01R5
- Product type
- Electrical
- MasterFormat
- 26

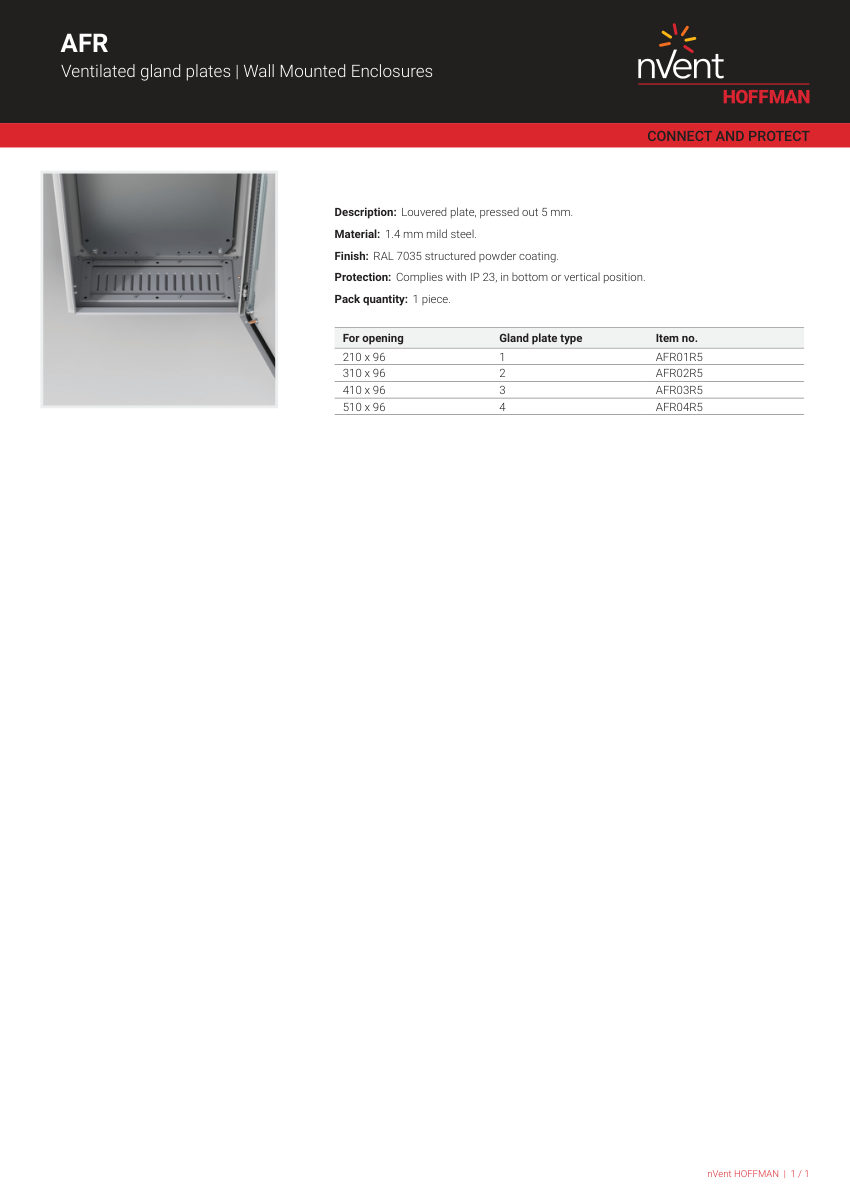

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | AFR01R5 |
|---|---|
| Description | nVent HOFFMAN Louvered plate (Ventilated gland plates). Model AFR. Louvered plate pressed out 5 mm |
| Material | 1.4 mm mild steel |
| Finish | RAL 7035 structured powder coating |
| Protection | IP 23 in bottom or vertical position. material: 1.4 mm mild steel |
| Finish | RAL 7035 structured powder coating |
| Mounting | Wall Mounted |
| Dimensions | 210 x 96, 310 x 96, 410 x 96, 510 x 96 |
| Compliance | IP 23. |
Also cataloged as: AFR02R5, AFR03R5, AFR04R5, AFR-01R5, AFR-02R5, AFR-03R5, AFR-04R5
