DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

nVent HOFFMANafr-pdczechAFR02R5

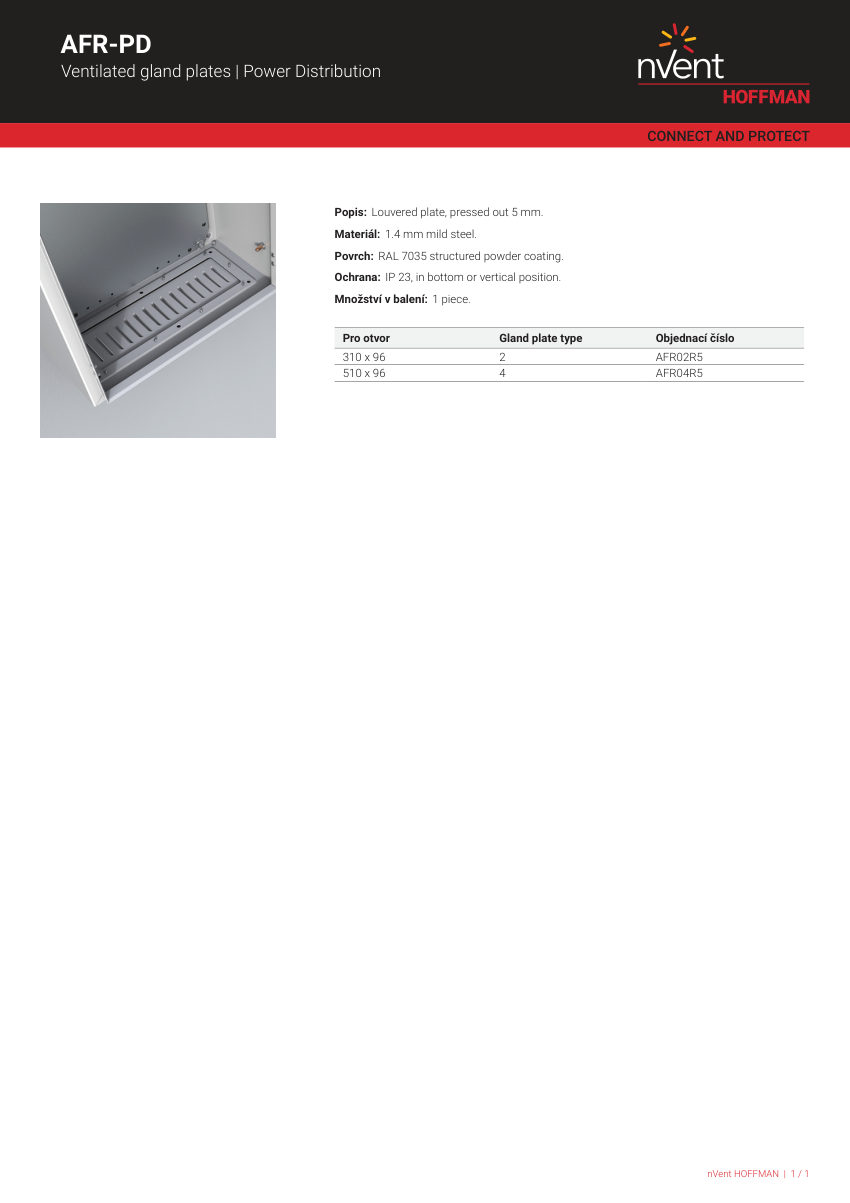

Name: nVent HOFFMAN afr-pdczech (AFR02R5)
Brand: nVent HOFFMAN
SKU: AFR02R5

nVent HOFFMAN Louvered plate (Ventilated gland plates). Model AFR-PD. Material: 1.4 mm mild steel

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	AFR02R5
Description	nVent HOFFMAN Louvered plate (Ventilated gland plates). Model AFR-PD. Material: 1.4 mm mild steel
Finish	RAL 7035 structured powder coating
Protection	IP 23 in bottom or vertical position
Available sizes	310 x 96 mm (AFR02R5) and 510 x 96 mm (AFR04R5). material: 1.4 mm mild steel
Finish	RAL 7035 structured powder coating
Mounting	Pressed out 5 mm
Dimensions	310 x 96 mm or 510 x 96 mm
Compliance	IP 23.

Also cataloged as: AFR04R5, AFR-02R5, AFR-04R5
