DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

nVent HOFFMANafsenglishAFS03021

nVent HOFFMAN Stainless steel wall mounted enclosure (Electrical Enclosures). Model AFS. Integrated sloping roof with 10 mm overhang; Protection degree IP 66 and IK 10; Single door with 130° opening angle; Zamak double-bit 3 mm lock standard. material: AISI 304L / AISI 316L pre-grained stainless steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAFS03021.pdfData sheet

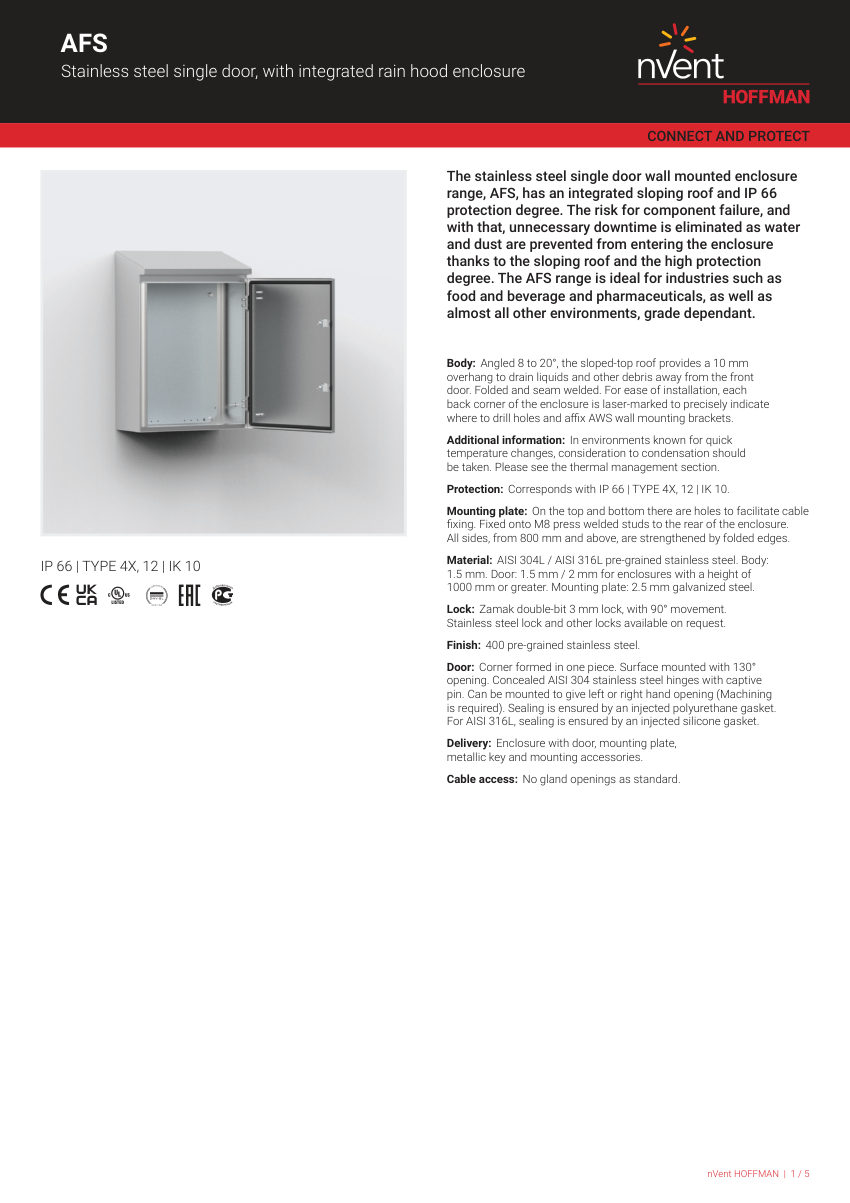

nVent HOFFMAN AFS03021 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
nVent HOFFMAN
Catalog no.
AFS03021
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAFS03021
DescriptionnVent HOFFMAN Stainless steel wall mounted enclosure (Electrical Enclosures). Model AFS. Integrated sloping roof with 10 mm overhang; Protection degree IP 66 and IK 10; Single door with 130° opening angle; Zamak double-bit 3 mm lock standard. material: AISI 304L / AISI 316L pre-grained stainless steel
Finish400 pre-grained stainless steel
MountingWall mounted
DimensionsH 300-800 mm, W 200-800 mm, D 155-300 mm
ComplianceIP 66, TYPE 4X, 12, IK 10.

Also cataloged as: AFS03021-316, AFS04031, AFS04031-316, AFS04042, AFS04042-316, AFS04062, AFS04062-316, AFS05052, AFS05052-316, AFS06042, AFS06042-316
