nVent HOFFMAN Wall mounted enclosure (Electrical Enclosure). Model AFS10083. Single door with integrated rain hood; Degree of slope 11°; 3 locks (Zamak double-bit 3 mm); Weight 51.75 kg. material: AISI 304L / AISI 316L pre-grained stainless steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAFS10083.pdfData sheet

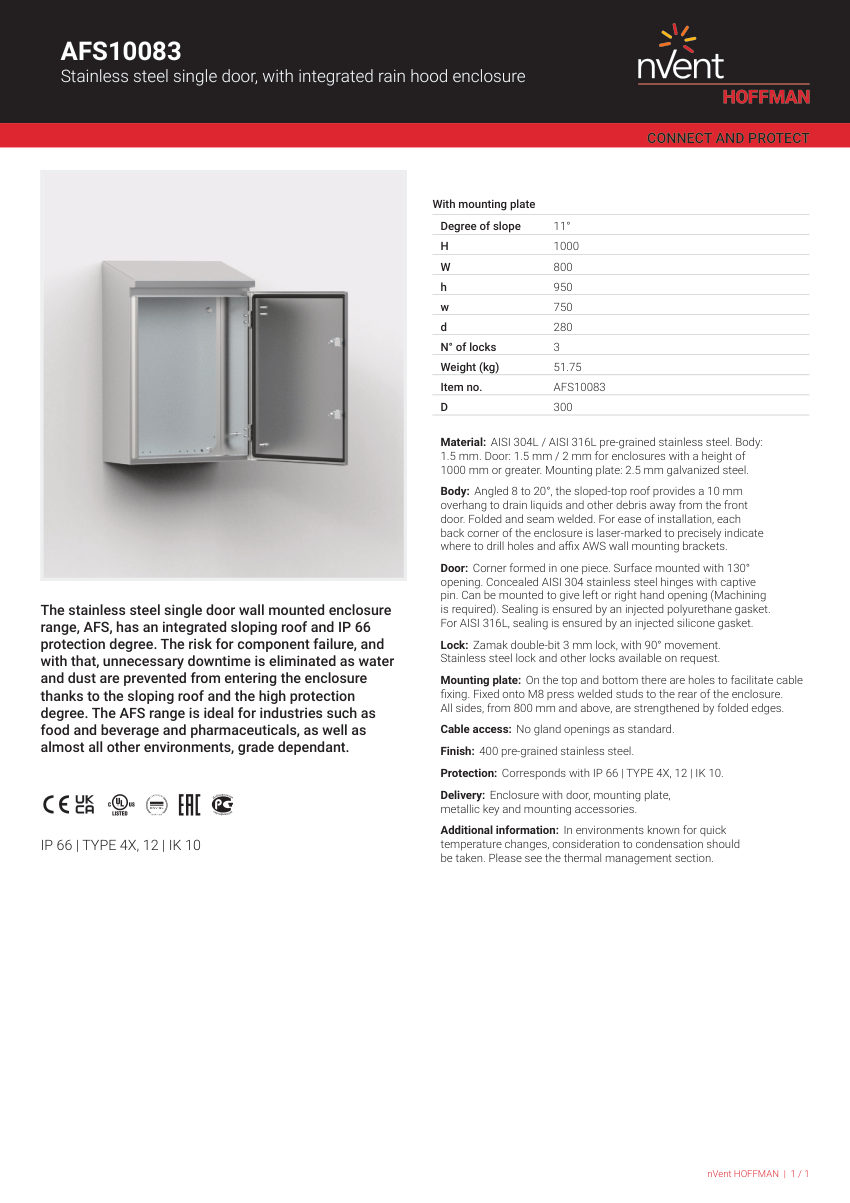

nVent HOFFMAN AFS10083 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
nVent HOFFMAN
Catalog no.
AFS10083
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAFS10083
DescriptionnVent HOFFMAN Wall mounted enclosure (Electrical Enclosure). Model AFS10083. Single door with integrated rain hood; Degree of slope 11°; 3 locks (Zamak double-bit 3 mm); Weight 51.75 kg. material: AISI 304L / AISI 316L pre-grained stainless steel
Finish400 pre-grained stainless steel
MountingWall mounted
DimensionsH 1000 x W 800 x D 300 mm
ComplianceIP 66 | TYPE 4X, 12 | IK 10.
