nVent HOFFMAN Ventilated gland plate (Electrical Enclosures). Model AFV-PD. Louvered plate pressed out 5 mm with filter; IP 53 protection rating; Available in 2-hole (310x96) and 4-hole (510x96) configurations; Part numbers AFV02R5 and AFV04R5. material: 1.4 mm mild steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAFV02R5.pdfData sheet

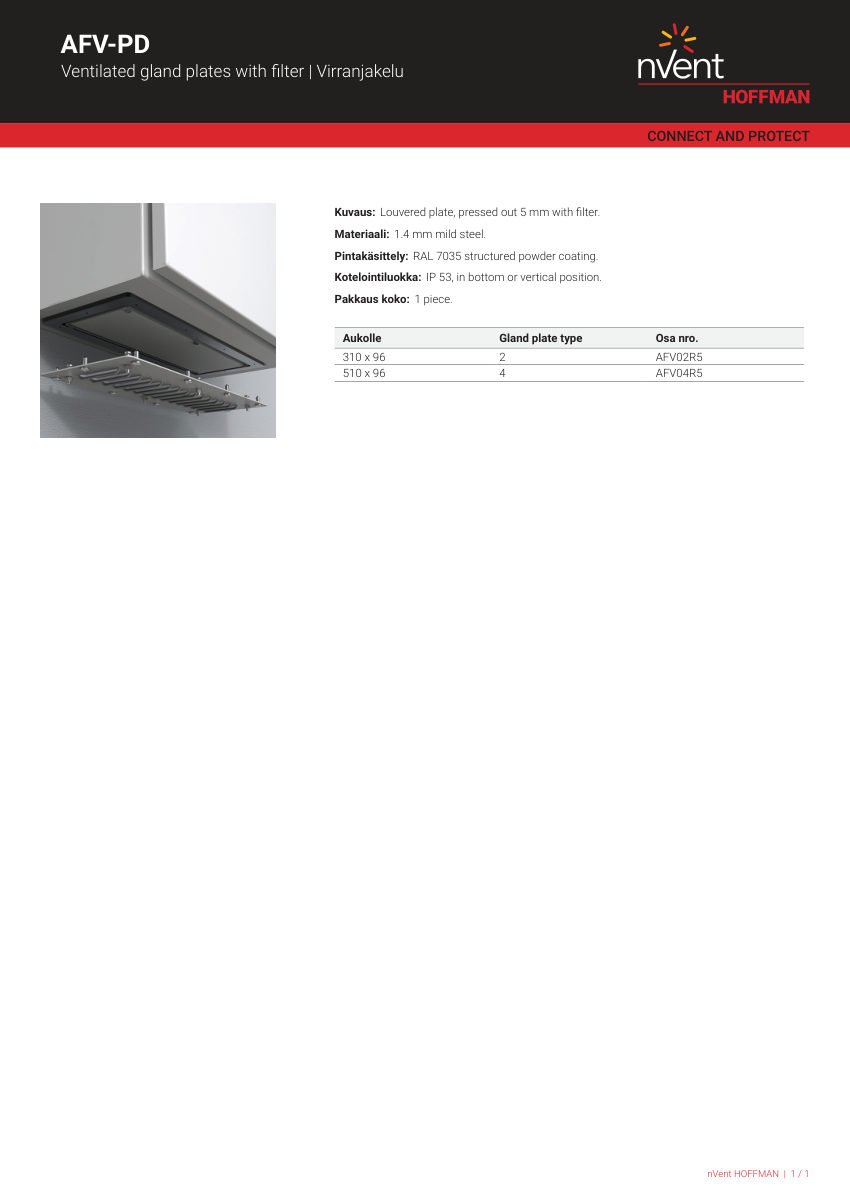

nVent HOFFMAN AFV02R5 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
nVent HOFFMAN
Catalog no.
AFV02R5
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAFV02R5
DescriptionnVent HOFFMAN Ventilated gland plate (Electrical Enclosures). Model AFV-PD. Louvered plate pressed out 5 mm with filter; IP 53 protection rating; Available in 2-hole (310x96) and 4-hole (510x96) configurations; Part numbers AFV02R5 and AFV04R5. material: 1.4 mm mild steel
FinishRAL 7035 structured powder coating
MountingBottom or vertical position
Dimensions310 x 96 mm or 510 x 96 mm
ComplianceIP 53.

Also cataloged as: AFV04R5, AFV-02, AFV-04, AFV-02R5, AFV-04R5, AFV-R5
