DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

nVent HOFFMANarfenglishARF02515R5

nVent HOFFMAN Rain hood (Enclosure Accessories). Model ARF. Fitted as outdoor shelter on single mounted enclosures; Roof is slightly sloped with dripstrip; Increases enclosure dimensions by H:60 mm, D:20 mm, W:20 mm; Not compatible with 180º MMH hinges. material: 1.5 mm mild steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFARF02515R5.pdfData sheet

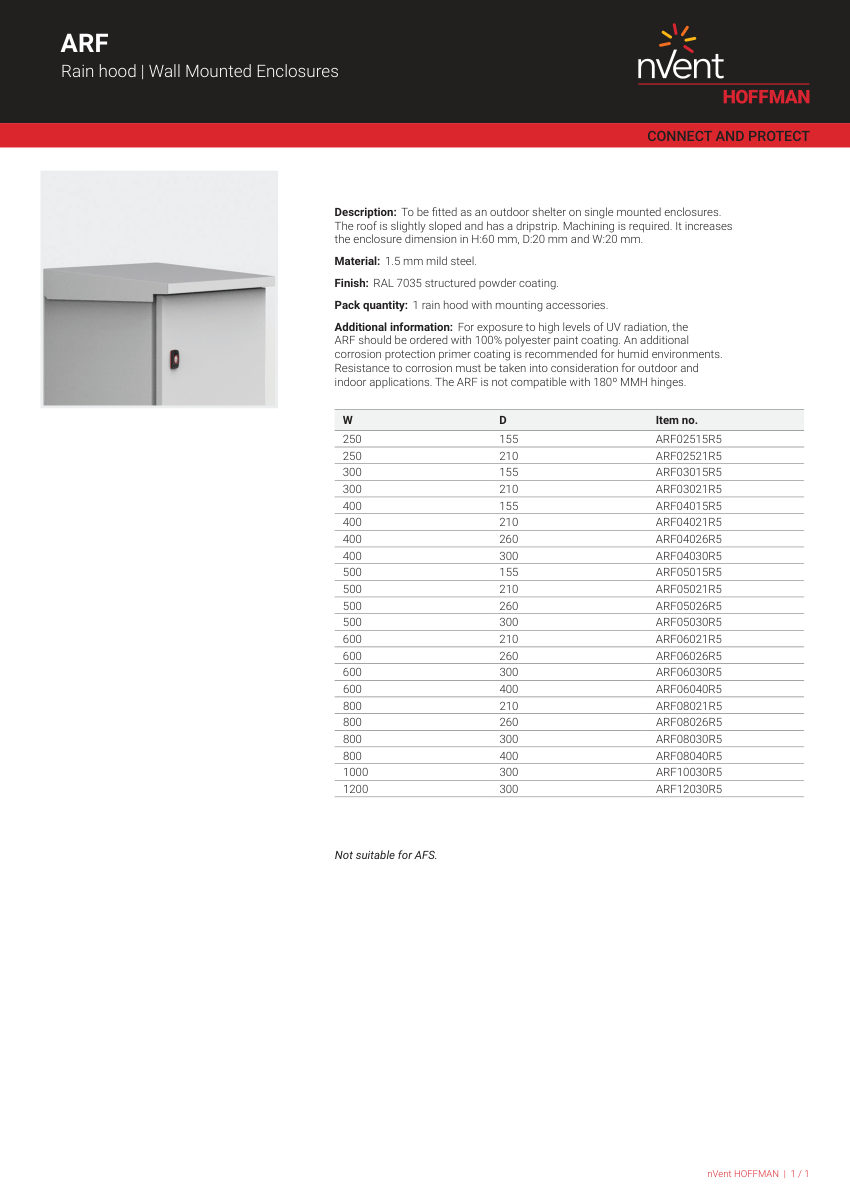

nVent HOFFMAN ARF02515R5 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
nVent HOFFMAN
Catalog no.
ARF02515R5
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberARF02515R5
DescriptionnVent HOFFMAN Rain hood (Enclosure Accessories). Model ARF. Fitted as outdoor shelter on single mounted enclosures; Roof is slightly sloped with dripstrip; Increases enclosure dimensions by H:60 mm, D:20 mm, W:20 mm; Not compatible with 180º MMH hinges. material: 1.5 mm mild steel
FinishRAL 7035 structured powder coating
MountingWall Mounted
DimensionsW: 250-1200 mm, D: 155-400 mm, H: +60 mm, D: +20 mm, W: +20 mm.

Also cataloged as: ARF02521R5, ARF03015R5, ARF03021R5, ARF04015R5, ARF04021R5, ARF04026R5, ARF04030R5, ARF05015R5, ARF05021R5, ARF05026R5, ARF05030R5, ARF06021R5, ARF06026R5, ARF06030R5, ARF06040R5, ARF08021R5, ARF08026R5, ARF08030R5, ARF08040R5, ARF10030R5, ARF12030R5, ARF-025, ARF-030, ARF-040, ARF-050, ARF-060, ARF-080, ARF-100, ARF-120, ARF-15, ARF-21, ARF-26, ARF-30, ARF-40
