nVent HOFFMANarf02521r5-englishARF02521R5
nVent HOFFMAN Rain hood (Wall Mounted Enclosures). Model ARF02521R5. Sloped roof with dripstrip; Increases enclosure dimensions by H:60 mm, D:20 mm, W:20 mm; Machining required for installation; Not compatible with 180° MMH hinges. material: 1.5 mm mild steel
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- nVent HOFFMAN
- Catalog no.
- ARF02521R5
- Product type
- Electrical
- MasterFormat
- 26

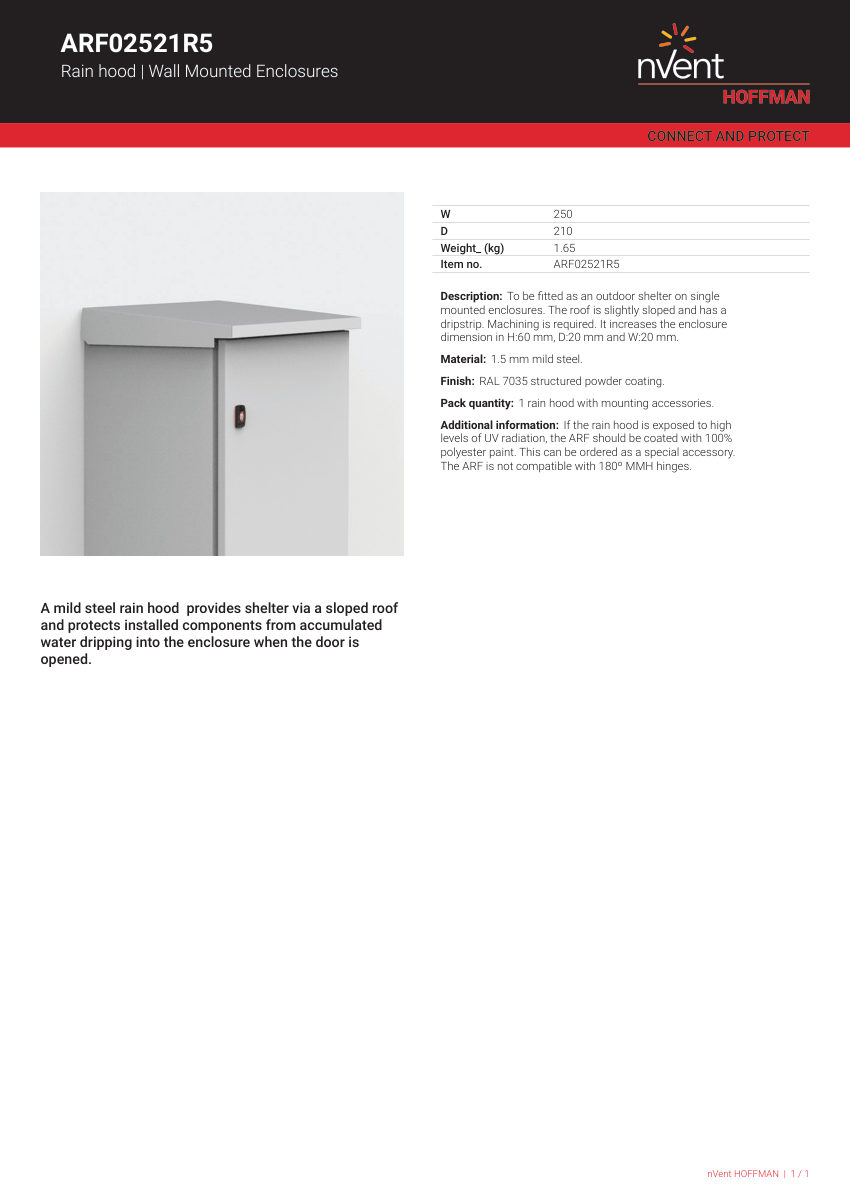

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | ARF02521R5 |
|---|---|
| Description | nVent HOFFMAN Rain hood (Wall Mounted Enclosures). Model ARF02521R5. Sloped roof with dripstrip; Increases enclosure dimensions by H:60 mm, D:20 mm, W:20 mm; Machining required for installation; Not compatible with 180° MMH hinges. material: 1.5 mm mild steel |
| Finish | RAL 7035 structured powder coating |
| Mounting | Outdoor shelter for single mounted enclosures |
| Dimensions | W: 250 mm, D: 210 mm, Weight: 1.65 kg. |
- Official cut sheet, indexed
- Auto-matched to your schedule
- Cover + TOC, one click
