DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

nVent HOFFMANarf-pdnorwegianARF06021R5

nVent HOFFMAN Rain hood (Enclosure Accessories). Model ARF-PD. Roof is slightly sloped with a dripstrip; Machining is required for installation; Not compatible with 180º MMH hinges; Optional 100% polyester paint coating available for high UV exposure. material: 1.5 mm mild steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFARF06021R5.pdfData sheet

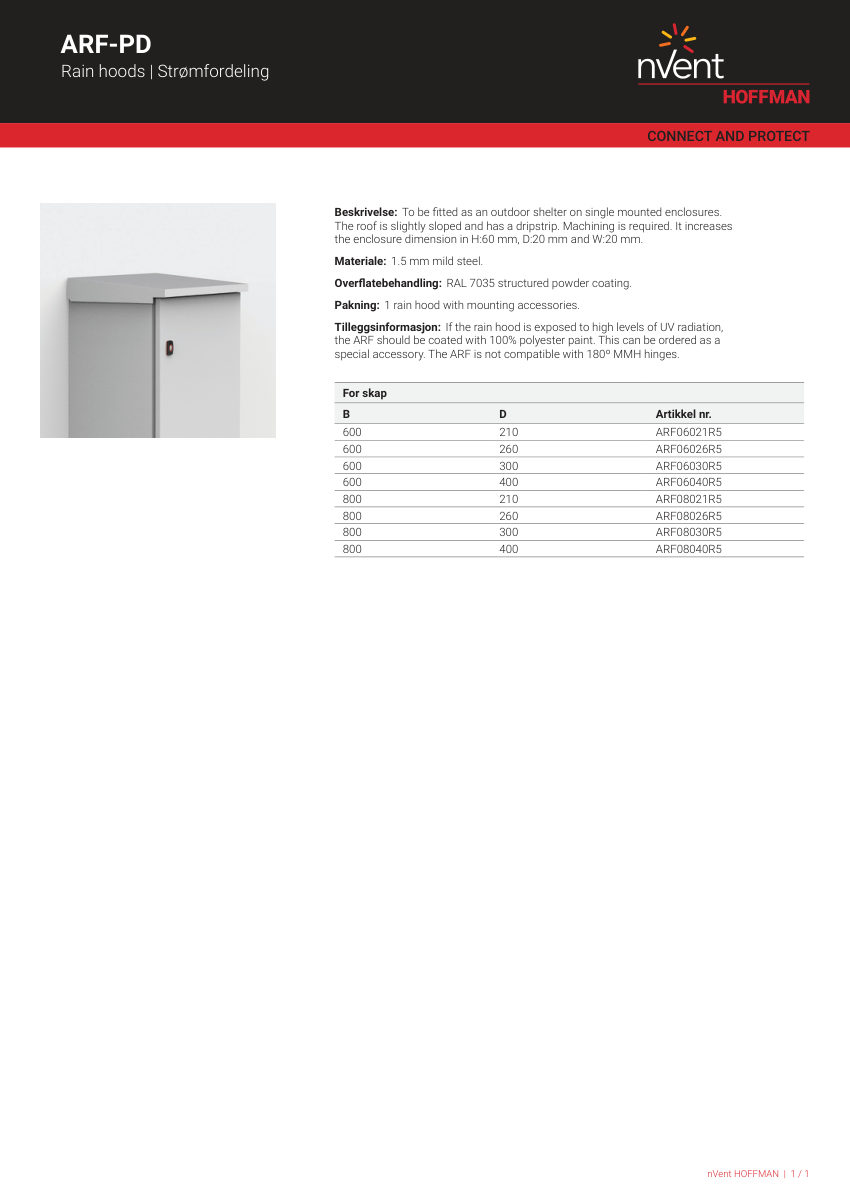

nVent HOFFMAN ARF06021R5 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
nVent HOFFMAN
Catalog no.
ARF06021R5
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberARF06021R5
DescriptionnVent HOFFMAN Rain hood (Enclosure Accessories). Model ARF-PD. Roof is slightly sloped with a dripstrip; Machining is required for installation; Not compatible with 180º MMH hinges; Optional 100% polyester paint coating available for high UV exposure. material: 1.5 mm mild steel
FinishRAL 7035 structured powder coating
MountingOutdoor shelter for single mounted enclosures
DimensionsIncreases enclosure dimension in H:60 mm, D:20 mm and W:20 mm.

Also cataloged as: ARF06026R5, ARF06030R5, ARF06040R5, ARF08021R5, ARF08026R5, ARF08030R5, ARF08040R5, ARF-060, ARF-080, ARF-21, ARF-26, ARF-30, ARF-40, ARF-R5, ARF-021, ARF-026, ARF-030, ARF-040, ARF-210, ARF-260, ARF-300, ARF-400, ARF-06, ARF-08
