DIV 26 · ELECTRICALELECTRICALCUT SHEET INDEXED

nVent HOFFMANasr-iec_naenglishASR0242415

nVent HOFFMAN Stainless steel single door wall mounted enclosure (Electrical Enclosures). Model ASR-IEC_NA. IP 66 protection degree; Body thickness 1.5 mm; Door thickness 1.5 mm or 2 mm depending on size and material; 130° door opening with concealed hinges. material: AISI 304L / AISI 316L pre-grained stainless steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFASR0242415.pdfData sheet

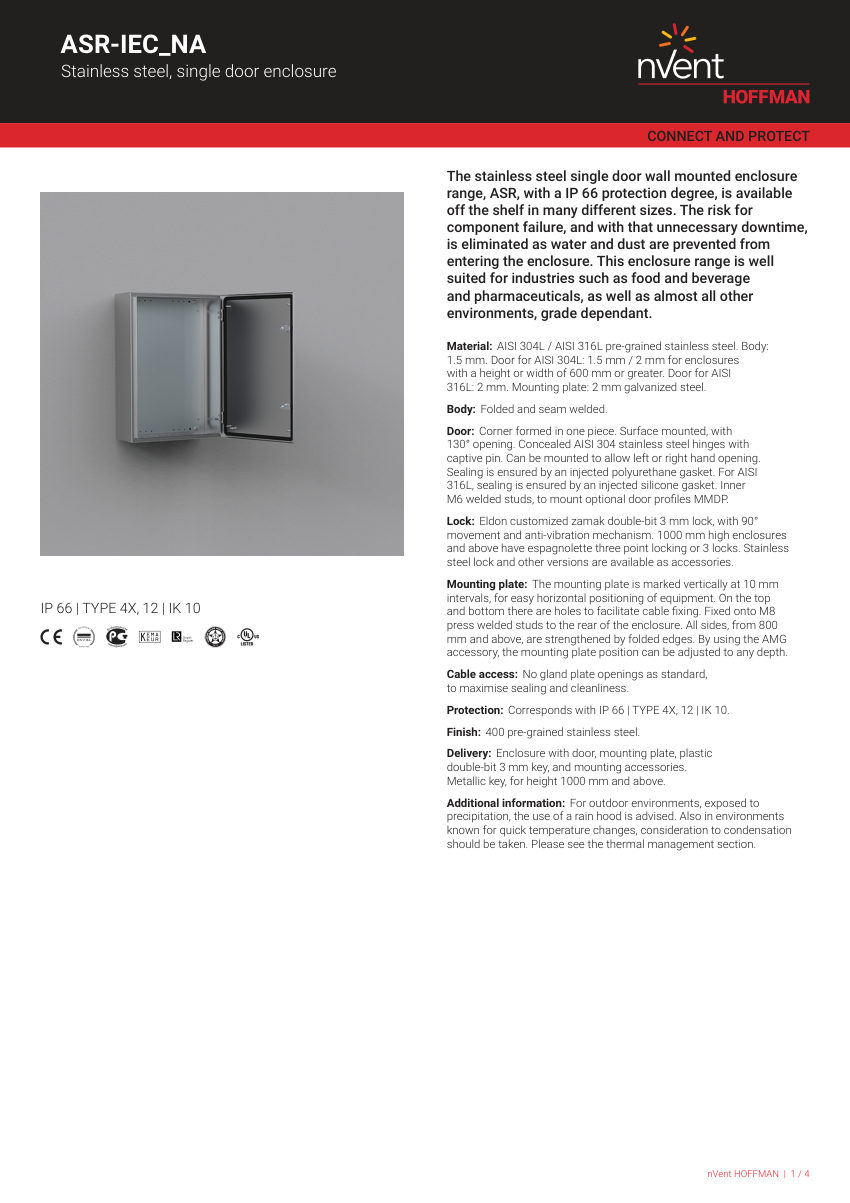

nVent HOFFMAN ASR0242415 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
nVent HOFFMAN
Catalog no.
ASR0242415
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberASR0242415
DescriptionnVent HOFFMAN Stainless steel single door wall mounted enclosure (Electrical Enclosures). Model ASR-IEC_NA. IP 66 protection degree; Body thickness 1.5 mm; Door thickness 1.5 mm or 2 mm depending on size and material; 130° door opening with concealed hinges. material: AISI 304L / AISI 316L pre-grained stainless steel
Finish400 pre-grained stainless steel
MountingSurface mounted, wall mounted
DimensionsH 240-600mm, W 200-600mm, D 150-210mm (varies by model)
ComplianceIP 66, TYPE 4X, 12, IK 10.

Also cataloged as: ASR0302015, ASR0302015-316, ASR0403015, ASR0403021, ASR0403021-316, ASR0404021, ASR0404021-316, ASR0406021, ASR0406021-316, ASR0504021, ASR0504021-316
