nVent HOFFMANASR0403015
nVent HOFFMAN Stainless steel single door wall mounted enclosure (Electrical Enclosure). Model ASR0403015. IP 66 protection degree; IK 10 impact resistance; Single door with 130° opening; Weight 6.25 kg. material: AISI 304L / AISI 316L pre-grained stainless steel
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- nVent HOFFMAN
- Catalog no.
- ASR0403015
- Product type
- Electrical
- MasterFormat
- 26

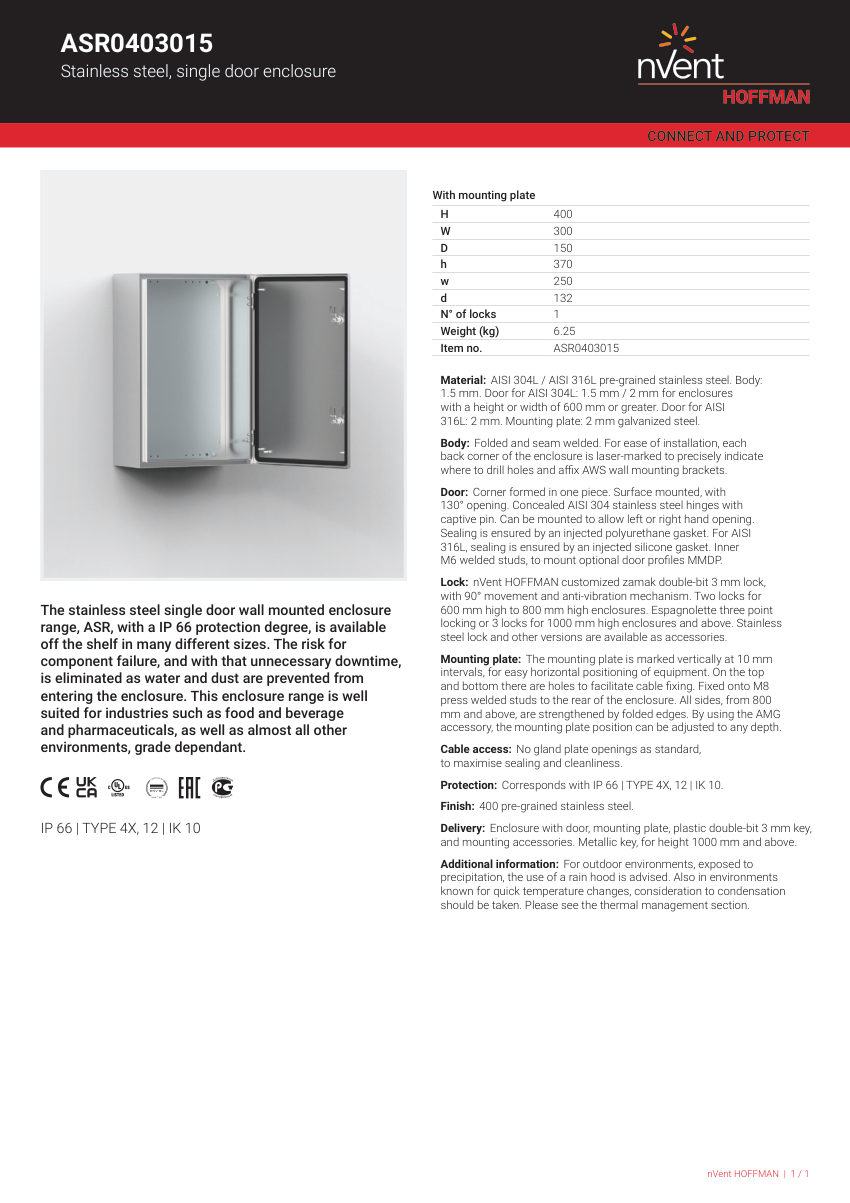

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | ASR0403015 |
|---|---|
| Description | nVent HOFFMAN Stainless steel single door wall mounted enclosure (Electrical Enclosure). Model ASR0403015. IP 66 protection degree; IK 10 impact resistance; Single door with 130° opening; Weight 6.25 kg. material: AISI 304L / AISI 316L pre-grained stainless steel |
| Finish | 400 pre-grained stainless steel |
| Mounting | Wall mounted with mounting plate |
| Dimensions | H 400 x W 300 x D 150 mm |
| Compliance | IP 66 | TYPE 4X, 12 | IK 10. |
