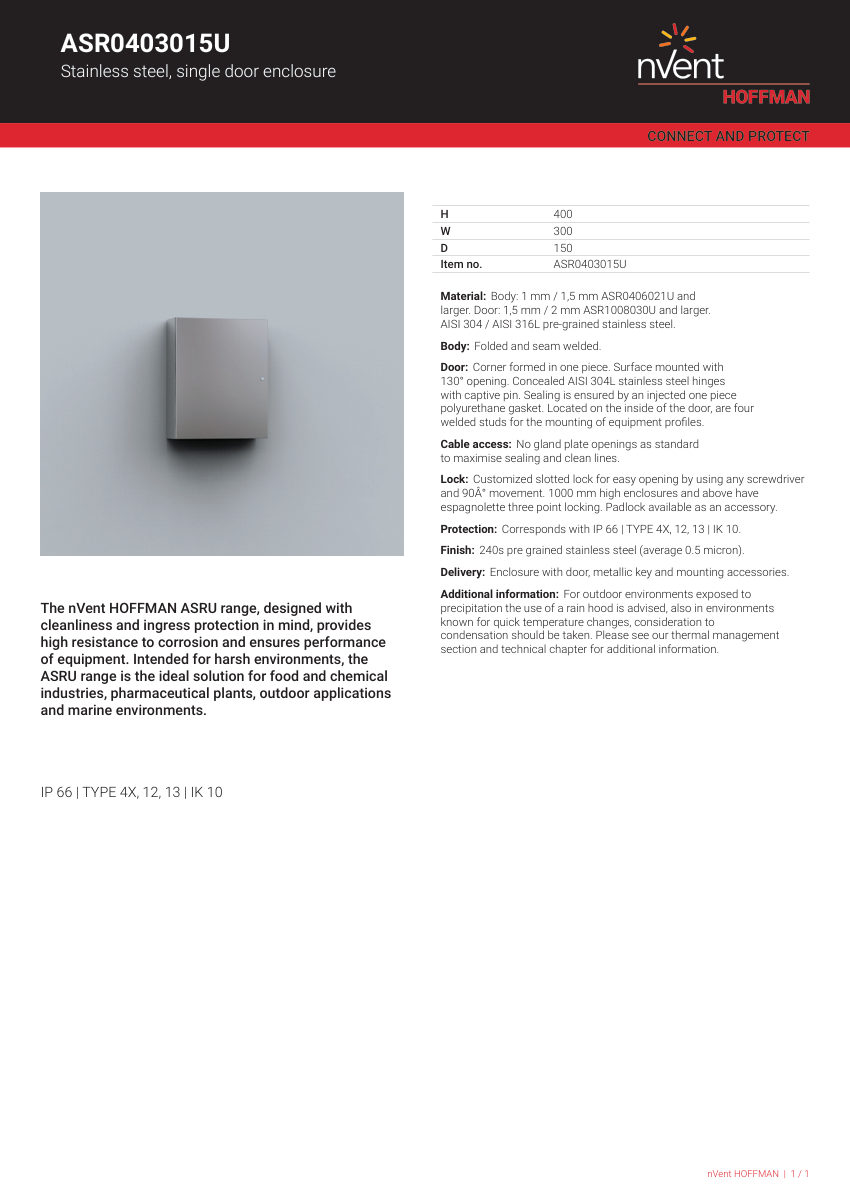

nVent HOFFMANASR0403015U

Name: nVent HOFFMAN ASR0403015U
Brand: nVent HOFFMAN
SKU: ASR0403015U

nVent HOFFMAN Stainless steel single door enclosure (Enclosure). Model ASR0403015U. Body material: 1 mm / 1.5 mm AISI 304/316L stainless steel

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	ASR0403015U
Description	nVent HOFFMAN Stainless steel single door enclosure (Enclosure). Model ASR0403015U. Body material: 1 mm / 1.5 mm AISI 304/316L stainless steel
Door material	1.5 mm / 2 mm AISI 304/316L stainless steel
Door opening angle	130°
Locking mechanism	Customized slotted lock. material: AISI 304 / AISI 316L pre-grained stainless steel
Finish	240s pre grained stainless steel
Mounting	Surface mounted
Dimensions	H 400 x W 300 x D 150 mm
Compliance	IP 66 \| TYPE 4X, 12, 13 \| IK 10.
