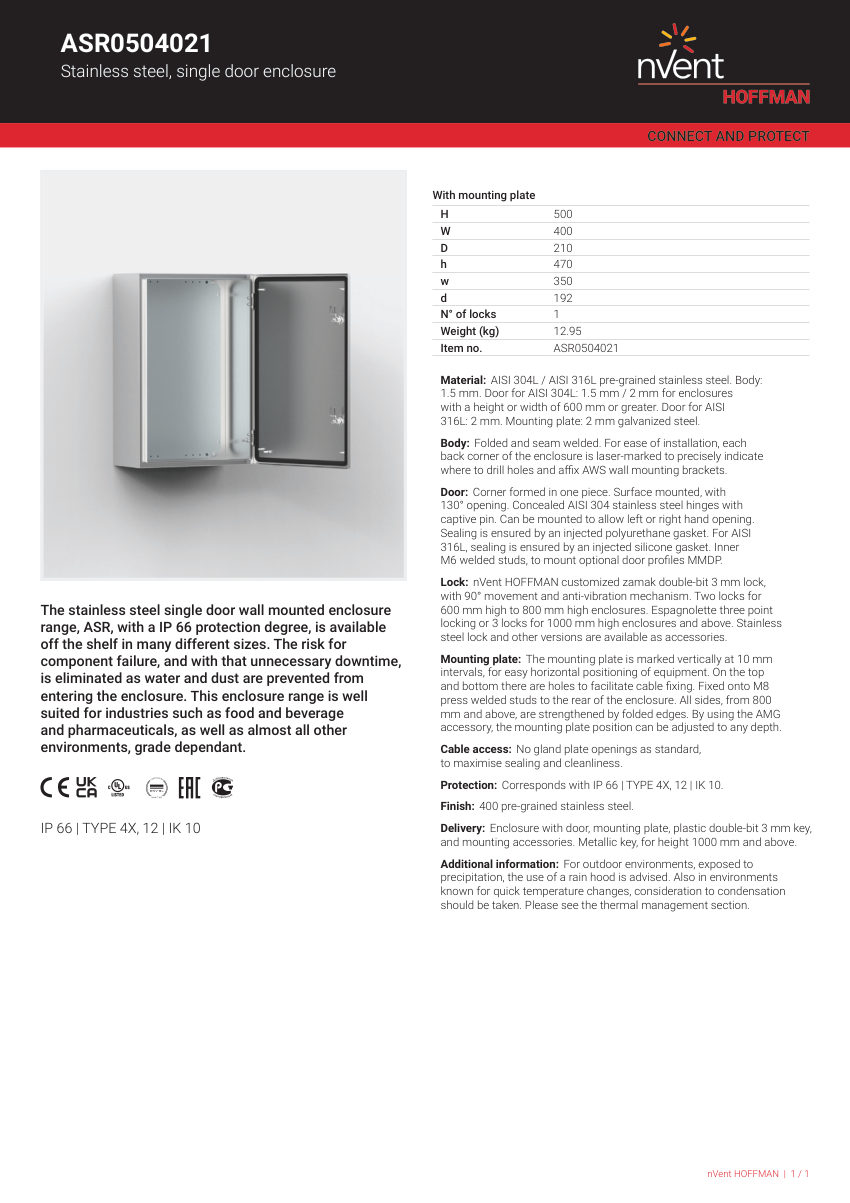

nVent HOFFMANASR0504021
nVent HOFFMAN Stainless steel single door wall mounted enclosure (Electrical Enclosure). Model ASR0504021. IP 66 protection degree; Single door with 130° opening; Weight 12.95 kg; Includes mounting plate and 1 lock. material: AISI 304L / AISI 316L pre-grained stainless steel
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- nVent HOFFMAN
- Catalog no.
- ASR0504021
- Product type
- Electrical
- MasterFormat
- 26
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | ASR0504021 |
|---|---|
| Description | nVent HOFFMAN Stainless steel single door wall mounted enclosure (Electrical Enclosure). Model ASR0504021. IP 66 protection degree; Single door with 130° opening; Weight 12.95 kg; Includes mounting plate and 1 lock. material: AISI 304L / AISI 316L pre-grained stainless steel |
| Finish | 400 pre-grained stainless steel |
| Mounting | Wall mounted |
| Dimensions | H 500 x W 400 x D 210 mm |
| Compliance | IP 66 | TYPE 4X, 12 | IK 10. |
