nVent HOFFMANASR1008030U

nVent HOFFMAN Stainless steel single door enclosure (Enclosure). Model ASR1008030U. Body thickness 1.5 mm, Door thickness 2 mm; Door opening angle 130°; Concealed AISI 304L hinges with captive pin; Injected one piece polyurethane gasket. material: AISI 304 / AISI 316L pre-grained stainless steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFASR1008030U.pdfData sheet

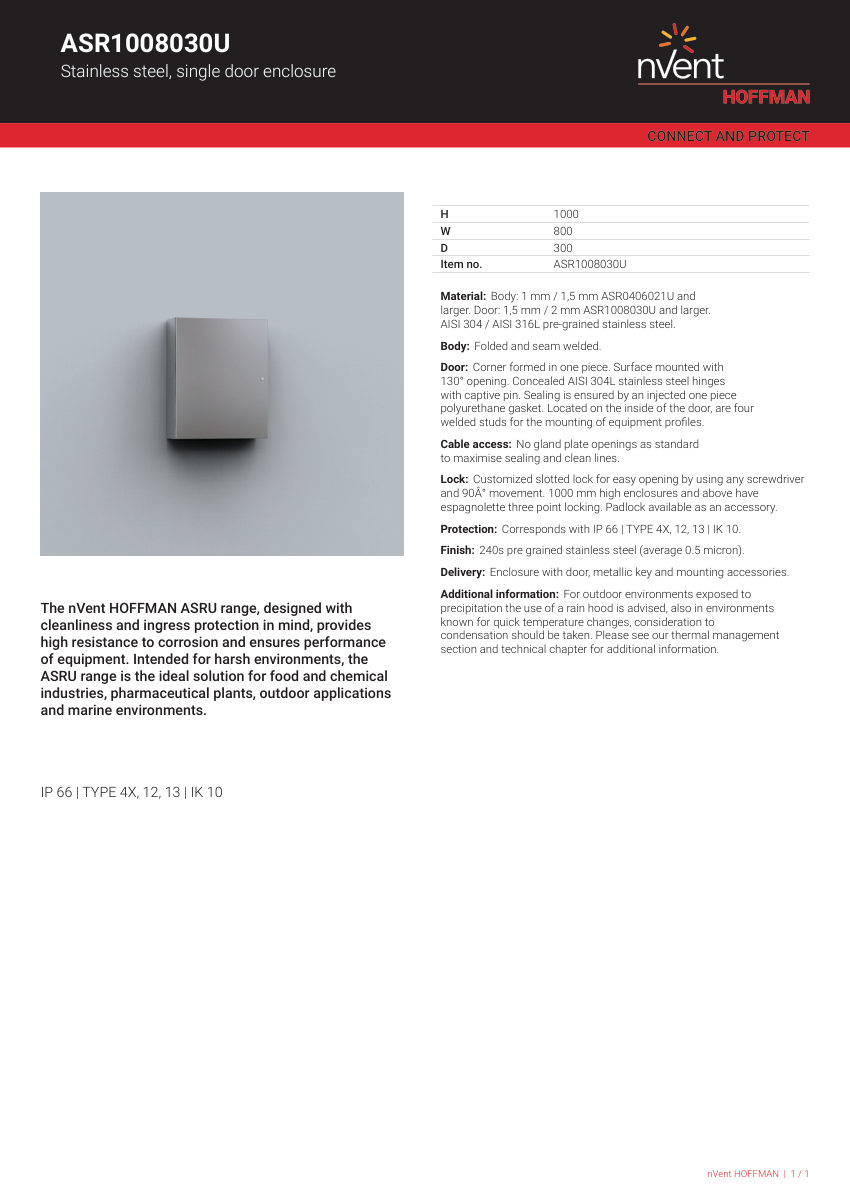

nVent HOFFMAN ASR1008030U cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
nVent HOFFMAN
Catalog no.
ASR1008030U
Product type
Electrical
MasterFormat
26
Cut sheet
PDF · manufacturer current

Product details

Catalog numberASR1008030U
DescriptionnVent HOFFMAN Stainless steel single door enclosure (Enclosure). Model ASR1008030U. Body thickness 1.5 mm, Door thickness 2 mm; Door opening angle 130°; Concealed AISI 304L hinges with captive pin; Injected one piece polyurethane gasket. material: AISI 304 / AISI 316L pre-grained stainless steel
Finish240s pre grained stainless steel (average 0.5 micron)
MountingSurface mounted
DimensionsH 1000 x W 800 x D 300 mm
ComplianceIP 66 | TYPE 4X, 12, 13 | IK 10.
