DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

PowersTempTAP 105105

Powers Thermostatic Faucet (TempTAP). Model 105. Factory set temperature 105°F (41°C); Temperature adjustment range 60–120°F (15–49°C); Maximum hot water temperature 194°F (90°C); Integrated check valves in copper supplies. material: Lead Free brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF105.pdfData sheet

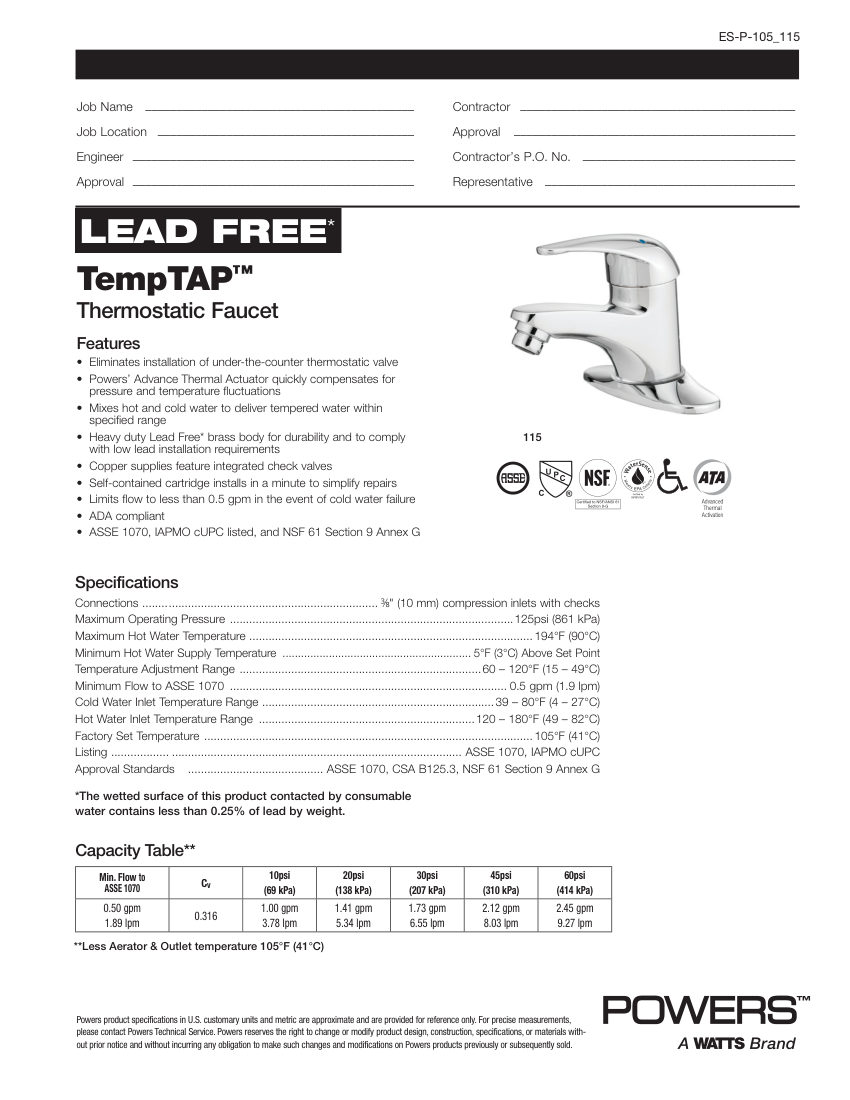

Powers 105 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Powers
Catalog no.
105
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number105
DescriptionPowers Thermostatic Faucet (TempTAP). Model 105. Factory set temperature 105°F (41°C); Temperature adjustment range 60–120°F (15–49°C); Maximum hot water temperature 194°F (90°C); Integrated check valves in copper supplies. material: Lead Free brass
Connection size3/8" (10 mm)
End connectionCompression inlets with checks
Pressure Rating125 psi (861 kPa)
Flow Rate0.5 gpm (1.9 lpm) minimum to ASSE 1070
Dimensions5-7/8" [150] x 4-7/8" [123] x 2-1/16" [52].

Also cataloged as: 105VA, 105-6, 105PW, 105A5, 105V5, 105A15, 105L, 105VL, 105L5, 105VL5, 115, 115VA, 115-6, 115PW, 115A5, 115V5, 115A15, 115L, 115VL, 115L5, 115VL5
