DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

PowersHydroGuard Diverters - 3-Port, Exposed for Shower Arm141-700

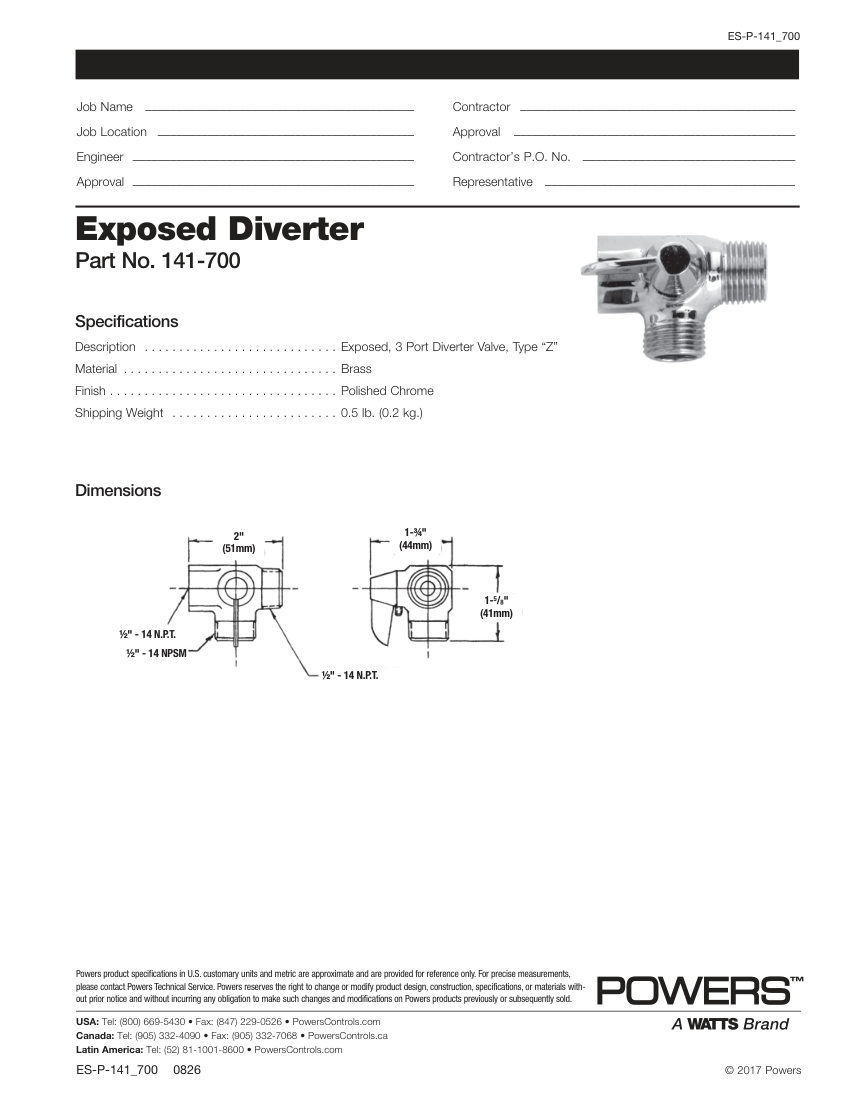

Name: Powers HydroGuard Diverters - 3-Port, Exposed for Shower Arm (141-700)
Brand: Powers
SKU: 141-700

Powers Exposed Diverter Valve (HydroGuard Diverters). Model 141-700. 3-Port Diverter Valve, Type "Z"

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	141-700
Description	Powers Exposed Diverter Valve (HydroGuard Diverters). Model 141-700. 3-Port Diverter Valve, Type "Z"
Material	Brass
Finish	Polished Chrome
Connections	1/2" - 14 N.P.T. and 1/2" - 14 NPSM. material: Brass
Connection size	1/2" - 14 N.P.T. / 1/2" - 14 NPSM
End connection	N.P.T. / NPSM
Finish	Polished Chrome
Mounting	Exposed
Dimensions	2" (51mm) x 1-3/4" (44mm) x 1-5/8" (41mm).
