DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

PowersHydroPanel II 450-e420E450421

Powers Shower System. Model ES-P-450-e420. Includes HydroGuard e420 temperature/pressure combination valve; ADA compliant lever handle with color coded dial; Maximum hot water temperature 190°F (88°C); Minimum hot water supply temperature 10°F (6°C) above set point. material: Brushed 18 Gauge 304 stainless steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF450421.pdfData sheet

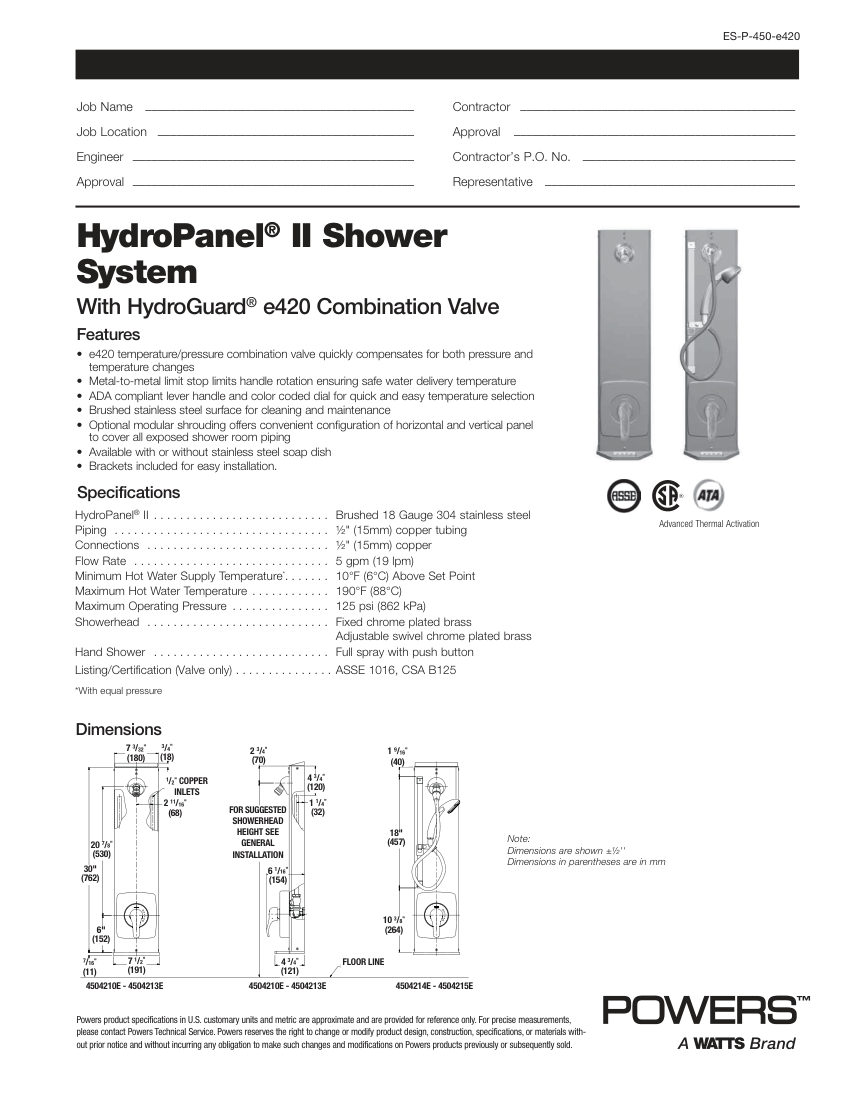

Powers 450421 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Powers
Catalog no.
450421
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number450421
DescriptionPowers Shower System. Model ES-P-450-e420. Includes HydroGuard e420 temperature/pressure combination valve; ADA compliant lever handle with color coded dial; Maximum hot water temperature 190°F (88°C); Minimum hot water supply temperature 10°F (6°C) above set point. material: Brushed 18 Gauge 304 stainless steel
Connection size1/2" (15mm) copper
End connection1/2" (15mm) copper
Pressure Rating125 psi (862 kPa)
Flow Rate5 gpm (19 lpm)
FinishBrushed stainless steel.

Also cataloged as: 4504210E, 4504211E, 4504212E, 4504213E, 4504214E, 4504215E, 450421-0E, 450421-1E, 450421-2E, 450421-3E, 450421-4E
