DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

PowersFlowrite II 597597-S

Powers Balanced Control Valve (Powers Flowrite II). Model 597-SI. Body Material: Cast Iron

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF597-S.pdfData sheet

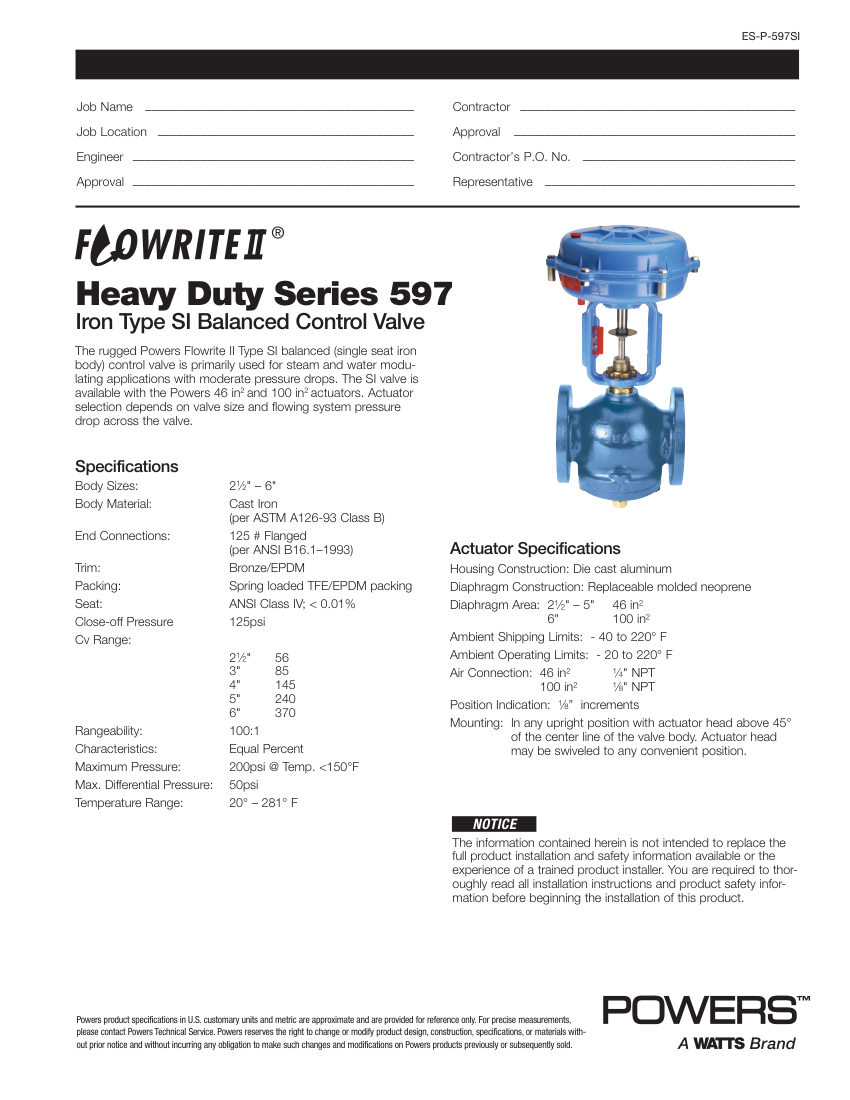

Powers 597-S cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Powers
Catalog no.
597-S
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number597-S
DescriptionPowers Balanced Control Valve (Powers Flowrite II). Model 597-SI. Body Material: Cast Iron
TrimBronze/EPDM; Close-off Pressure: 125psi
Rangeability100:1. material: Cast Iron (ASTM A126-93 Class B)
Connection size2.5" - 6"
End connection125# Flanged (ANSI B16.1-1993)
Pressure Rating200psi @ Temp. <150°F
Flow RateCv 56 (2.5") to 370 (6")
MountingUpright position with actuator head above 45° of center line.

Also cataloged as: 597-S-250, 597-S-300, 597-S-400, 597-S-500, 597-S-600, 597-S-F, 597-S-B, 597-S-X, 597-S-C, 597-S-T, 597-S-4C
