PowersHydroGuard e420 HydroGuard PB410 - Exposede423

Powers Thermostatic Mixing Valve (HydroGuard Series e420). Model e423. 3-port configuration; Adjustable temperature limit stop (factory set at 110°F [43°C]); Maximum hot water supply temperature 190°F (88°C); Lever-type handle. material: Cast-brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFe423.pdfData sheet

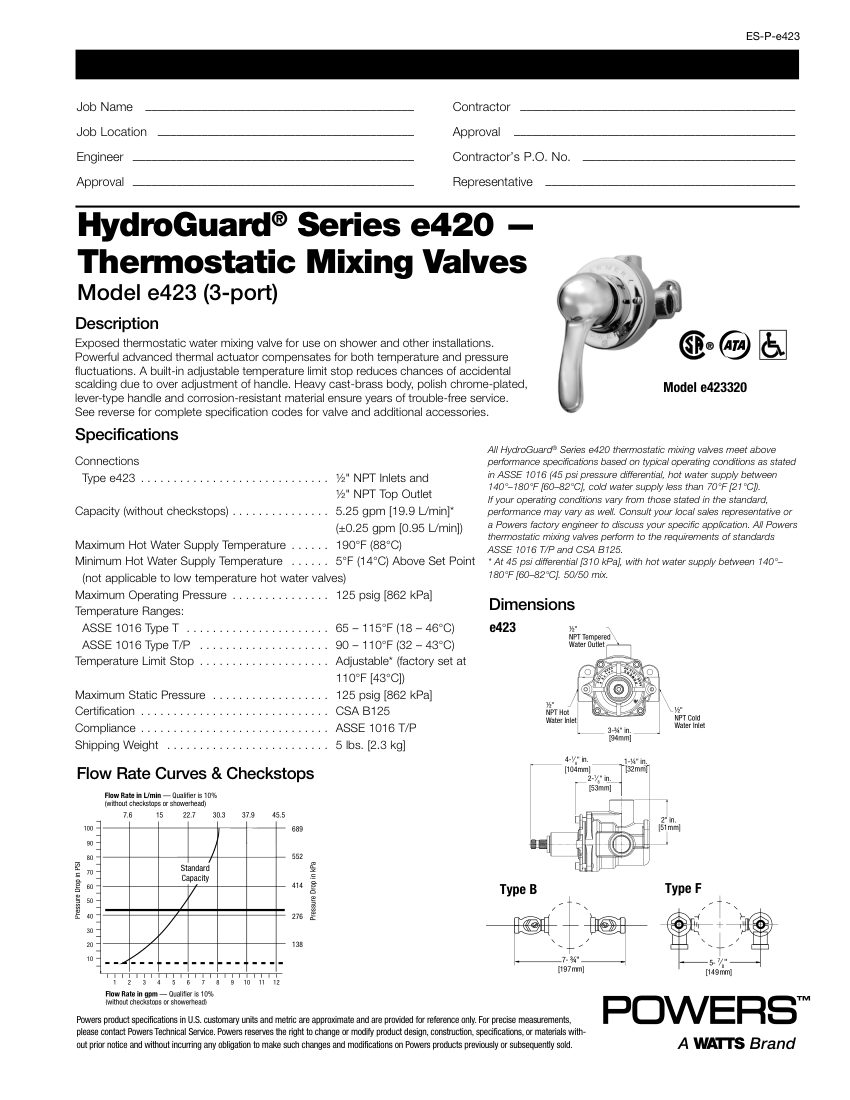

Powers e423 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Powers
Catalog no.
e423
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numbere423
DescriptionPowers Thermostatic Mixing Valve (HydroGuard Series e420). Model e423. 3-port configuration; Adjustable temperature limit stop (factory set at 110°F [43°C]); Maximum hot water supply temperature 190°F (88°C); Lever-type handle. material: Cast-brass
Connection size1/2" NPT
End connection1/2" NPT Inlets and 1/2" NPT Top Outlet
Pressure Rating125 psig [862 kPa]
Flow Rate5.25 gpm [19.9 L/min]
FinishPolish chrome-plated.

Also cataloged as: e42332, e423-e423, e423-3, e423-2, e423-B, e423-F, e423-X
