DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

PowersHydroGuard e427e427/e428

Powers Thermostatic Mixing Valve (HydroGuard Series e420). Model e427. Maximum Hot Water Supply Temperature: 190°F (88°C); Standard Temperature Range: 90 – 110°F (32 – 43°C)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFe427-e428.pdfData sheet

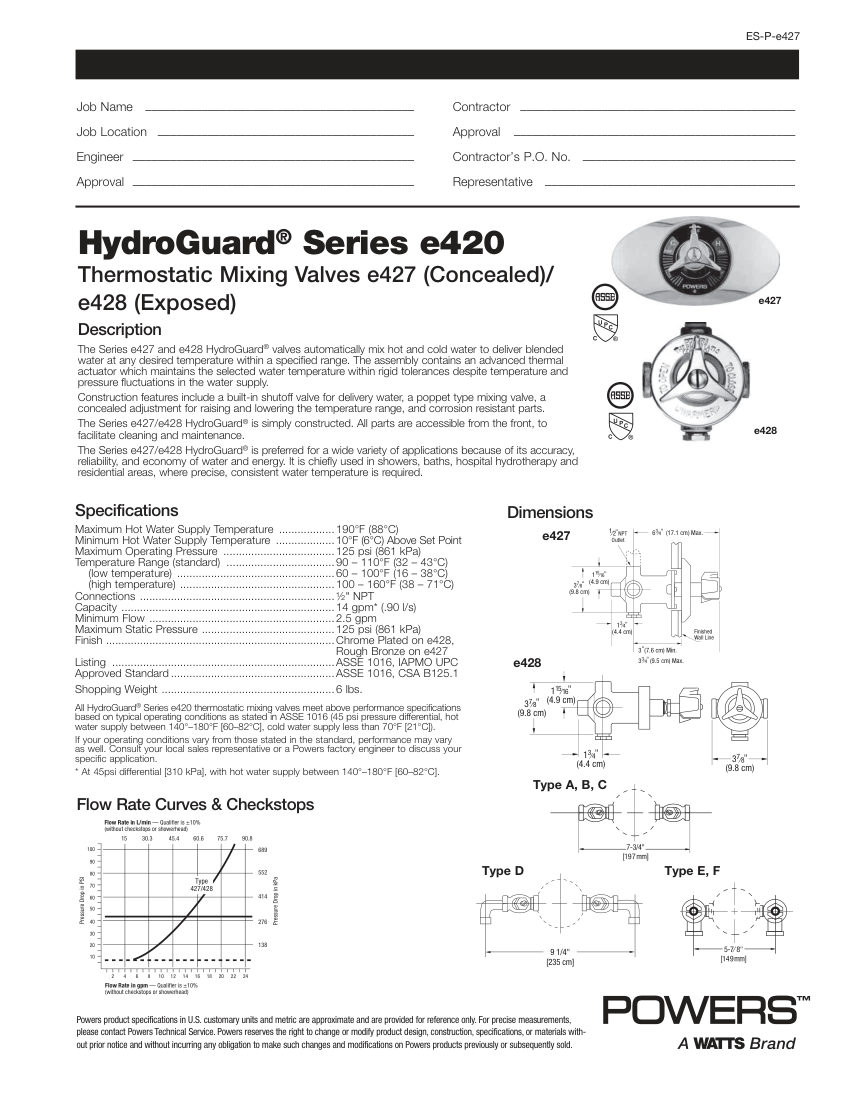

Powers e427/e428 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Powers
Catalog no.
e427/e428
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numbere427/e428
DescriptionPowers Thermostatic Mixing Valve (HydroGuard Series e420). Model e427. Maximum Hot Water Supply Temperature: 190°F (88°C); Standard Temperature Range: 90 – 110°F (32 – 43°C)
Minimum Flow2.5 gpm; Includes built-in shutoff valve and poppet type mixing valve. material: Corrosion resistant parts
Connection size1/2" NPT
End connectionNPT
Pressure Rating125 psi (861 kPa)
Flow Rate14 gpm (.90 l/s)
FinishRough Bronze.

Also cataloged as: e427/e428-A, e427/e428-C, e427/e428-D, e427/e428-E, e427/e428-B, e427/e428-F, e427/e428-X, e427/e428-J, e427/e428-K, e427/e428-M, e427/e428-G
