DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

PowersHydroGuard e700 - Frenche700

Powers Thermostatic Mixing Valve (HydroGuard T/P). Model e700 Series (e705, e707, e710). Max hot water supply temperature: 190°F (88°C)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFe700.pdfData sheet

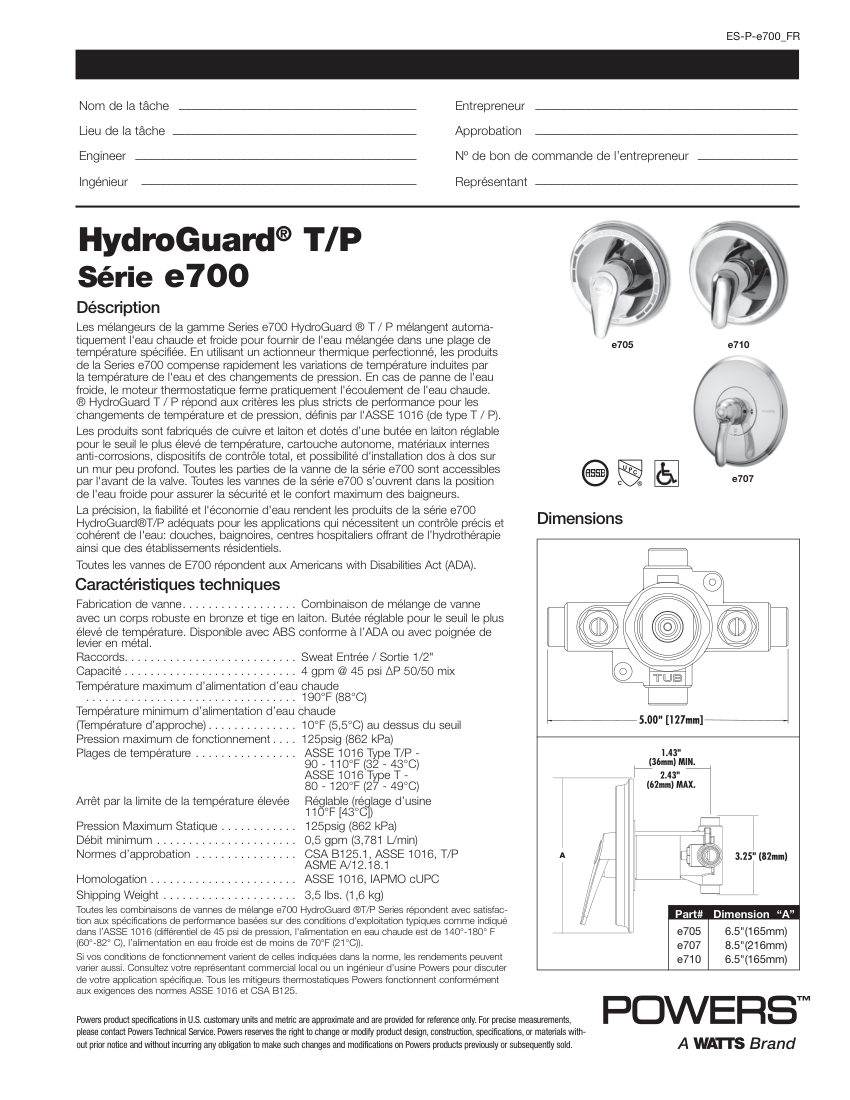

Powers e700 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Powers
Catalog no.
e700
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numbere700
DescriptionPowers Thermostatic Mixing Valve (HydroGuard T/P). Model e700 Series (e705, e707, e710). Max hot water supply temperature: 190°F (88°C)
Temperature range90-110°F (ASSE 1016 Type T/P)
Minimum flow rate0.5 gpm; Adjustable high-temperature limit stop (factory set 110°F). material: Bronze body, brass stem
Connection size1/2"
End connectionSweat
Pressure Rating125 psig (862 kPa)
Flow Rate4 gpm @ 45 psi ΔP
MountingBack-to-back on shallow wall.

Also cataloged as: e705, e707, e710, e700-e705, e700-e710, e700-e707, e700-J, e700-K, e700-M, e700-G, e700-H, e700-1, e700-2, e700-4, e700-5, e700-Q, e700-R, e700-S, e700-T, e700-U, e700-3, e700-6, e700-7, e700-8, e700-9, e700-L, e700-N, e700-Y, e700-A, e700-B, e700-Z, e700-V, e700-W
