PowersHydroGuard LFG480/LFE480LFE480-00Q

Powers Lavatory Thermostatic Mixing Valve (Thermostatic Mixing Valves). Model LFG480/LFE480. Factory set to 105°F (41°C); Temperature adjustment range 80–120°F (27–49°C); Maximum hot water temperature 180°F (82°C); Integral checks with screens prevent cross flow. material: Lead Free brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLFE480-00Q.pdfData sheet

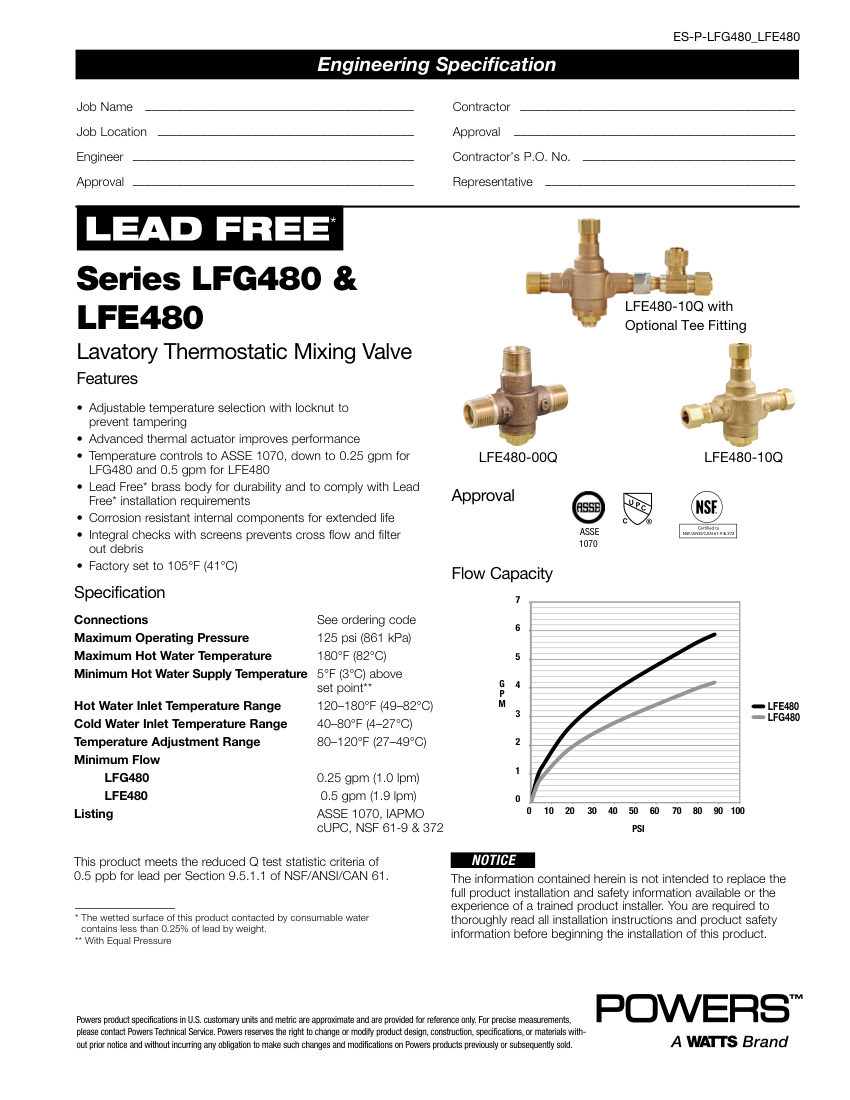

Powers LFE480-00Q cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Powers
Catalog no.
LFE480-00Q
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLFE480-00Q
DescriptionPowers Lavatory Thermostatic Mixing Valve (Thermostatic Mixing Valves). Model LFG480/LFE480. Factory set to 105°F (41°C); Temperature adjustment range 80–120°F (27–49°C); Maximum hot water temperature 180°F (82°C); Integral checks with screens prevent cross flow. material: Lead Free brass
Pressure Rating125 psi (861 kPa)
Flow Rate0.25 gpm (LFG480), 0.5 gpm (LFE480)
ComplianceASSE 1070, IAPMO cUPC, NSF/ANSI/CAN 61-9 & 372.

Also cataloged as: LFE480-10Q
