DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

PowersES-P-SF-LFMM430-BSRCLFMM-431

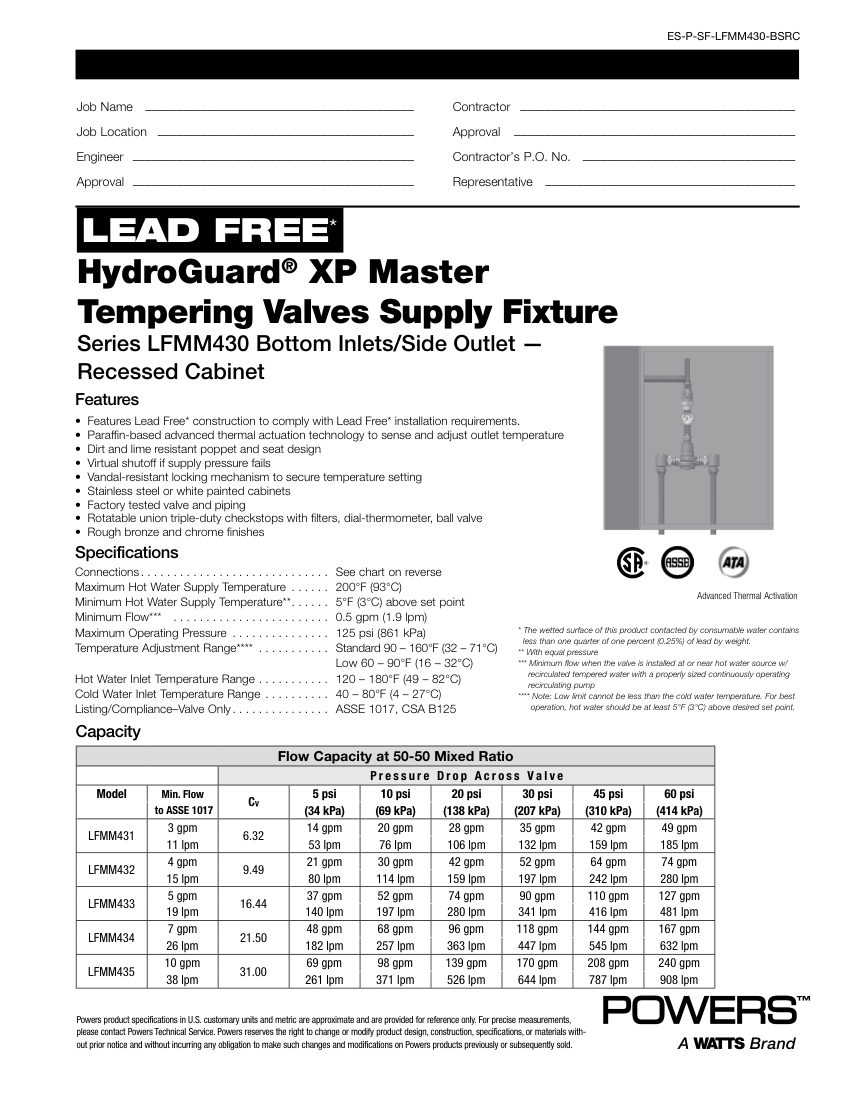

Name: Powers ES-P-SF-LFMM430-BSRC (LFMM-431)
Brand: Powers
SKU: LFMM-431

Powers Tempering Valve (HydroGuard XP Master). Model ES-P-SF-LFMM430-BSRC. Maximum Hot Water Supply Temperature: 200°F (93°C)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	LFMM-431
Description	Powers Tempering Valve (HydroGuard XP Master). Model ES-P-SF-LFMM430-BSRC. Maximum Hot Water Supply Temperature: 200°F (93°C)
Minimum Flow	0.5 gpm (1.9 lpm); Temperature Adjustment Range: 90–160°F (32–71°C) Standard; Hot Water Inlet Temperature Range: 120–180°F (49–82°C). material: Lead Free
End connection	Bottom Inlets/Side Outlet
Pressure Rating	125 psi (861 kPa)
Finish	Stainless steel or white painted cabinets
Mounting	Recessed Cabinet
Compliance	ASSE 1017, CSA B125.

Also cataloged as: LFMM-432, LFMM-433, LFMM-434, LFMM-435, LFMM-0, LFMM-4, LFMM-2, LFMM-6
