DIV 22 · PLUMBINGPLUMBINGCUT SHEET INDEXED

PowersES-P-SF-LFSH1430-2V-DVLFSH1432DV-AEM0

Powers Supply Fixture Exposed (HydroGuard XP Series). Model LFSH1430-2V-DV. Maximum Hot Water Supply Temperature: 200°F (93°C); Temperature Adjustment Range: 90 – 160°F (32 – 71°C)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLFSH1432DV-AEM0.pdfData sheet

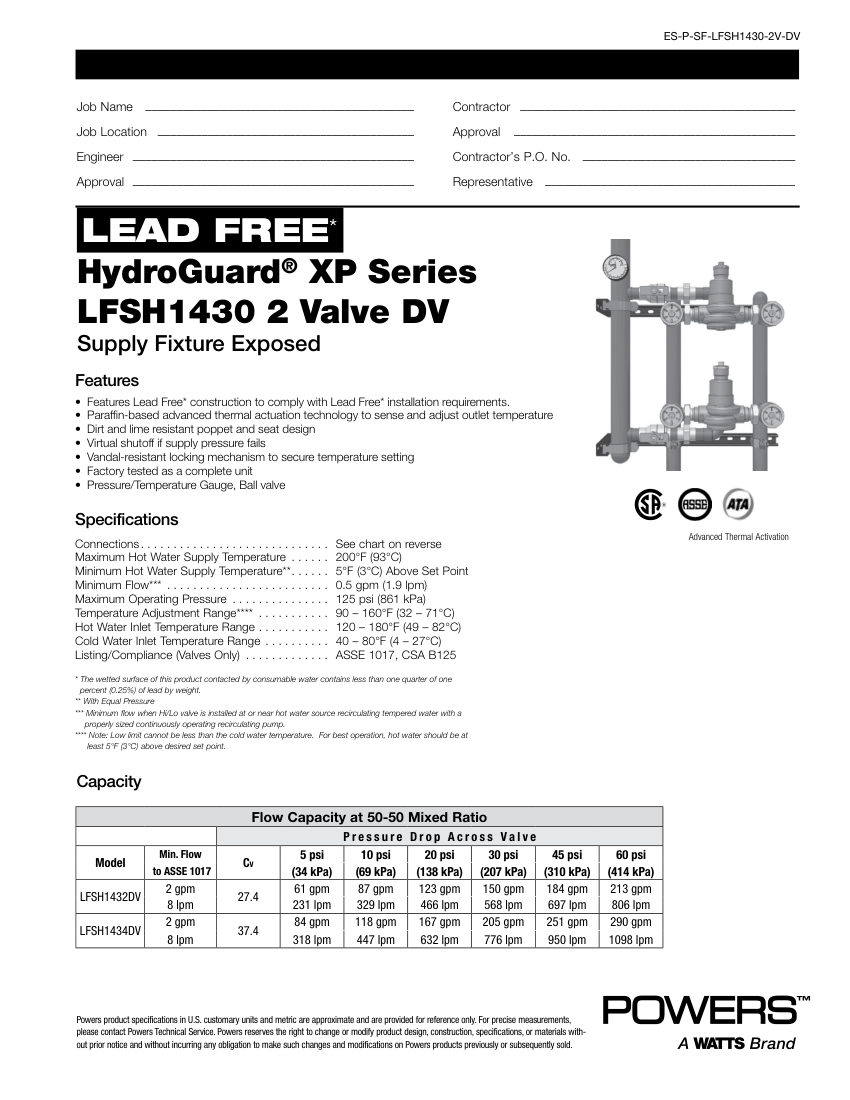

Powers LFSH1432DV-AEM0 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Powers
Catalog no.
LFSH1432DV-AEM0
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLFSH1432DV-AEM0
DescriptionPowers Supply Fixture Exposed (HydroGuard XP Series). Model LFSH1430-2V-DV. Maximum Hot Water Supply Temperature: 200°F (93°C); Temperature Adjustment Range: 90 – 160°F (32 – 71°C)
Minimum Flow0.5 gpm (1.9 lpm); Features Paraffin-based advanced thermal actuation. material: Lead Free
Connection size1-½" to 2-½"
End connectionBottom/Top
Pressure Rating125 psi (861 kPa)
Flow Rate2 gpm (8 lpm) min
FinishRough Bronze.

Also cataloged as: LFSH1434DV-AEM0
