PowersHydroGuard XP LFSH1430 HiLo - Wall Mounted Cabinet HiLoLFSH1432HL
Powers Anti-scald mixing valve (HydroGuard XP Series). Model LFSH1430. Maximum Operating Pressure: 125 psi (861 kPa); Temperature Adjustment Range: 90 – 160°F (32 – 71°C); Maximum Hot Water Supply Temperature: 200°F (93°C)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Powers
- Catalog no.
- LFSH1432HL
- Product type
- Plumbing
- MasterFormat
- 22

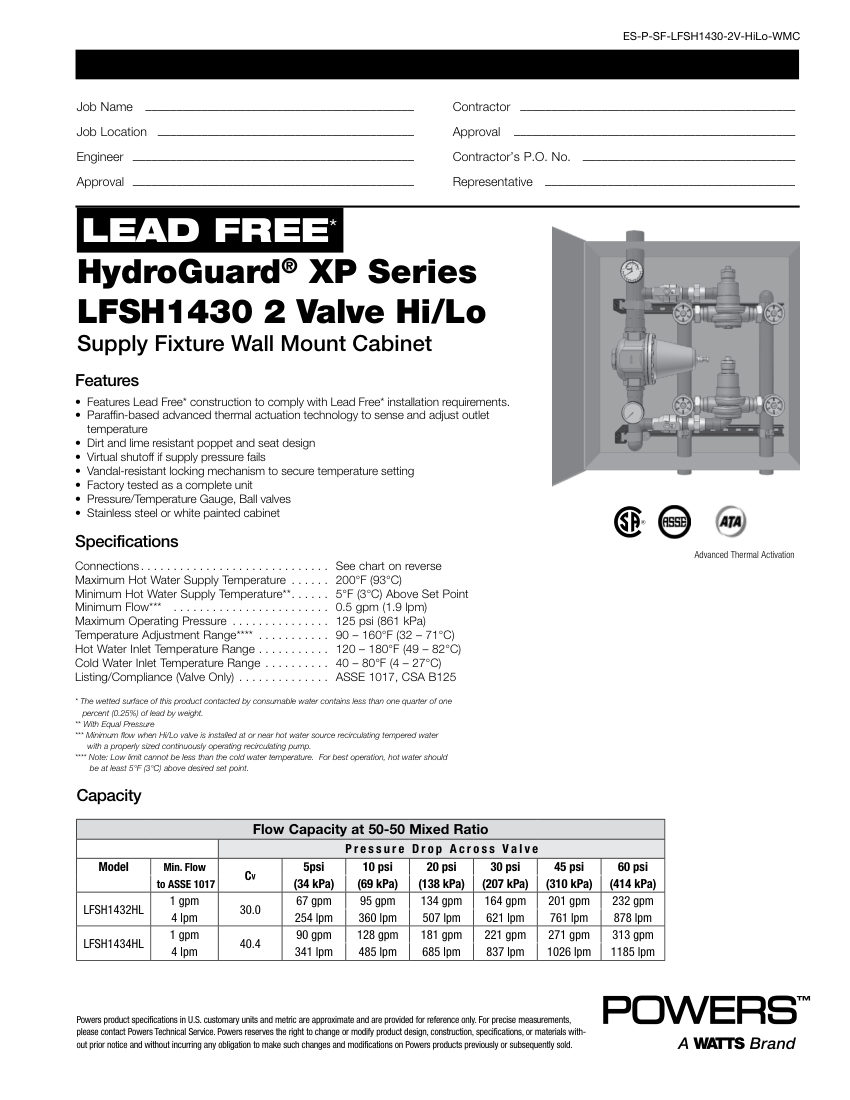

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | LFSH1432HL |
|---|---|
| Description | Powers Anti-scald mixing valve (HydroGuard XP Series). Model LFSH1430. Maximum Operating Pressure: 125 psi (861 kPa); Temperature Adjustment Range: 90 – 160°F (32 – 71°C); Maximum Hot Water Supply Temperature: 200°F (93°C) |
| Minimum Flow | 0.5 gpm (1.9 lpm). material: Lead Free |
| Connection size | 1-1/2" to 2-1/2" |
| End connection | Threaded |
| Pressure Rating | 125 psi (861 kPa) |
| Flow Rate | Min 1 gpm (4 lpm) |
| Finish | Stainless or White Painted Cabinet. |
Also cataloged as: LFSH1432HLAEQ00, LFSH1432HL-A, LFSH1432HL-E, LFSH1432HL-Q, LFSH1432HL-U, LFSH1432HL-0, LFSH1432HL-6, LFSH1432HL-W
