PowersHydroGuard XP LFSH1434 Quad Valve - Wall Mounted CabinetLFSH1434

Powers Anti-scald mixing valve (HydroGuard XP). Model LFSH1434. Maximum Operating Pressure: 125 psi (861 kPa); Temperature Adjustment Range: 90 – 160°F (32 – 71°C); Hot Water Inlet Temperature Range: 120 – 180°F (49 – 82°C); Cold Water Inlet Temperature Range: 40 – 80°F (4 – 27°C). material: Lead Free

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLFSH1434.pdfData sheet

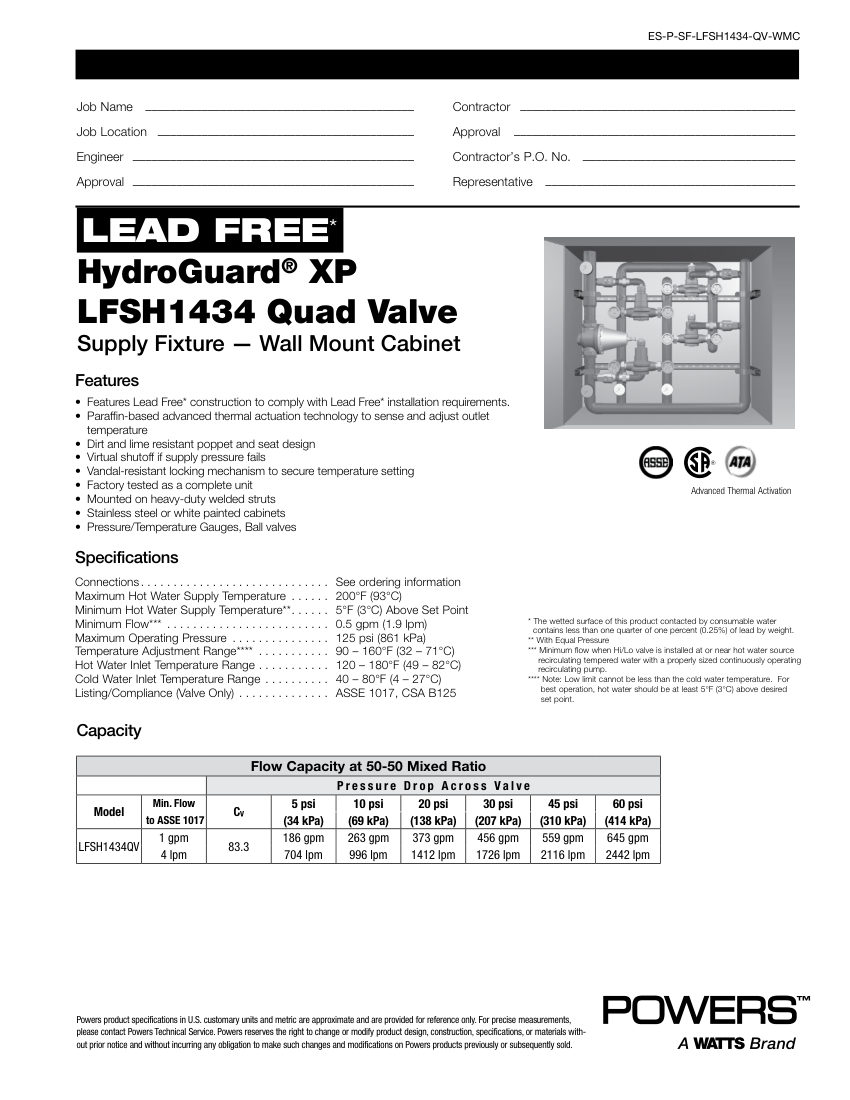

Powers LFSH1434 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Powers
Catalog no.
LFSH1434
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLFSH1434
DescriptionPowers Anti-scald mixing valve (HydroGuard XP). Model LFSH1434. Maximum Operating Pressure: 125 psi (861 kPa); Temperature Adjustment Range: 90 – 160°F (32 – 71°C); Hot Water Inlet Temperature Range: 120 – 180°F (49 – 82°C); Cold Water Inlet Temperature Range: 40 – 80°F (4 – 27°C). material: Lead Free
Pressure Rating125 psi (861 kPa)
Flow RateCV 83.3
FinishStainless steel or white painted cabinets
MountingWall Mounted Cabinet
Dimensions48" x 19" x 12 9/16".

Also cataloged as: LFSH1434QVAE0, LFSH1434-QV, LFSH1434-A, LFSH1434-E, LFSH1434-Q, LFSH1434-U, LFSH1434-0, LFSH1434 TV, LFSH1434 A, LFSH1434 E, LFSH1434 Q, LFSH1434 U, LFSH1434 0, LFSH1434-QV-A-E-M-0, LFSH1434-M, LFSH14346VAEMO, LFSH1434-6V, LFSH1434TVAEM0, LFSH1434-TV
