PowersHydroGuard XP LFSH1434 Six Valve - Wall Mounted CabinetLFSH14346

Powers Supply Fixture Wall Mount Cabinet (HydroGuard XP). Model LFSH1434. Maximum Operating Pressure: 125 psi (861 kPa); Temperature Adjustment Range: 90 – 160°F (32 – 71°C); Hot Water Inlet Temperature Range: 120 – 180°F (49 – 82°C); Cold Water Inlet Temperature Range: 40 – 80°F (4 – 27°C). material: Lead Free

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLFSH14346.pdfData sheet

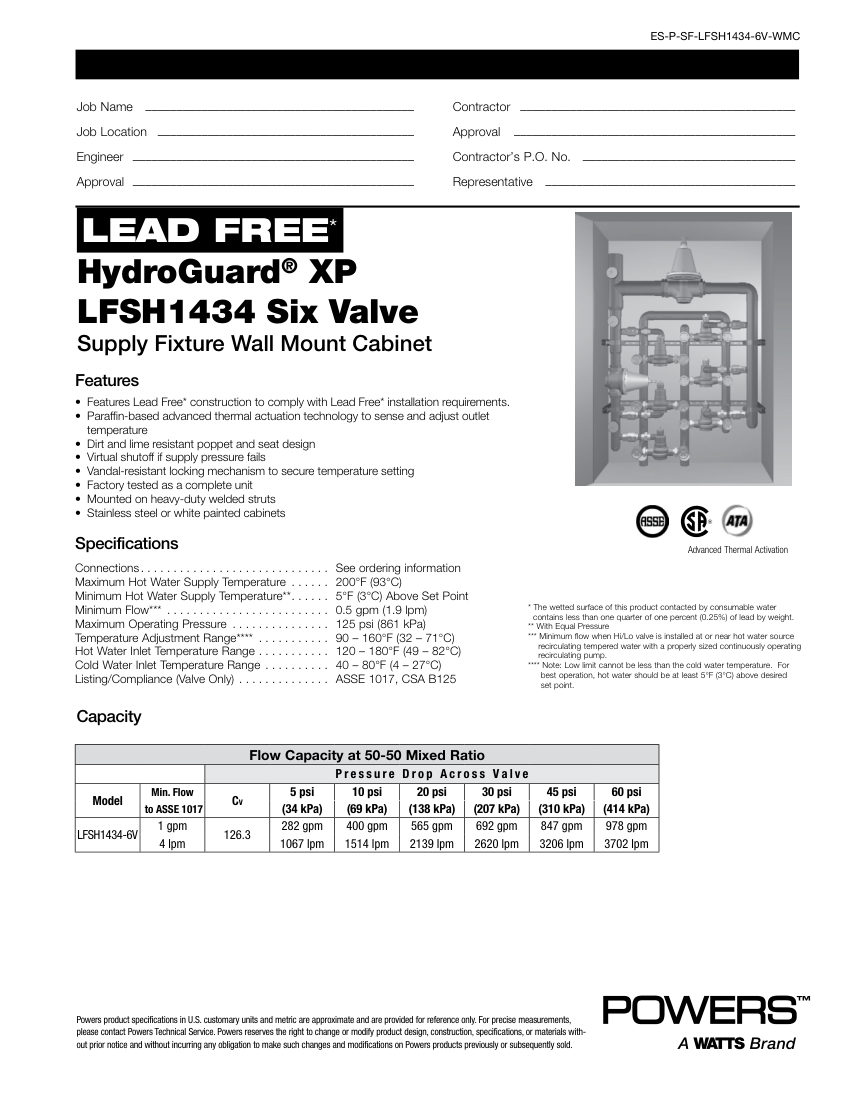

Powers LFSH14346 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Powers
Catalog no.
LFSH14346
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLFSH14346
DescriptionPowers Supply Fixture Wall Mount Cabinet (HydroGuard XP). Model LFSH1434. Maximum Operating Pressure: 125 psi (861 kPa); Temperature Adjustment Range: 90 – 160°F (32 – 71°C); Hot Water Inlet Temperature Range: 120 – 180°F (49 – 82°C); Cold Water Inlet Temperature Range: 40 – 80°F (4 – 27°C). material: Lead Free
Pressure Rating125 psi (861 kPa)
Flow RateCV 126.3
FinishStainless steel or white painted
MountingWall Mounted
Dimensions48" x 19" x 70".

Also cataloged as: LFSH14346VAE0, LFSH14346-V, LFSH14346-A, LFSH14346-E, LFSH14346-0, LFSH14346-U
